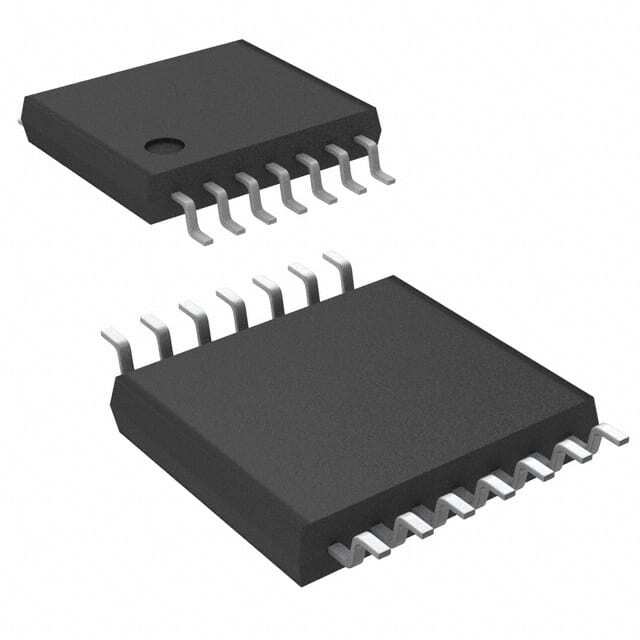

AD8304ARUZ

SKU: 109378

Manufacturer: Analog Devices

SP Amp LOG Amp Single R-R O/P 5.5V 14-Pin TSSOP Tube

80 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Logarithmic Amplifier
Number of Elements per pcs	2
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Output
Maximum Input Offset Voltage (mV)	20@5V
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Voltage Range (V)	5 to 7
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Maximum Input Bias Current (uA)	0.4(Typ)@5V
Maximum Input Resistance (MOhm)	35(Typ)@5V
Maximum Power Dissipation (mW)	270
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Power Supply Type	Single
Pin Count	14
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1
Package Length	5
Package Width	4.4
PCB changed	14
