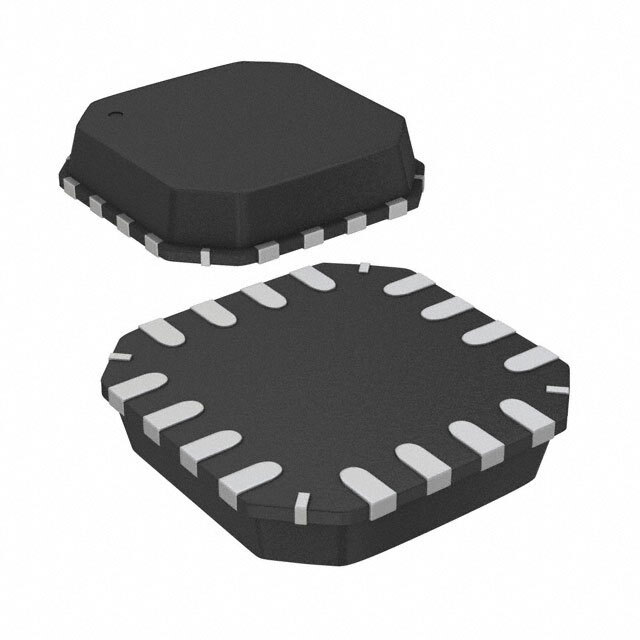

AD8295BCPZ-WP

SKU: 22865

Manufacturer: Analog Devices

INST Amp Single ±18V 16-Pin LFCSP EP Tray

1370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Number of Channels per Chip	1
Maximum Voltage Gain (dB)	60
Maximum Voltage Gain Range (dB)	60 to 75
Minimum CMRR (dB)	80
Minimum CMRR Range (dB)	75 to 85
Maximum Input Offset Voltage (mV)	0.06@±15V
Operating Supply Voltage-Max (V)	±18
Maximum Supply Voltage Range (V)	30 to 50
Minimum Dual Supply Voltage (V)	±2.3
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±18
Maximum Input Bias Current (uA)	0.0008@±15V
Maximum Supply Current (mA)	2.3@±15V
Maximum Input Resistance (MOhm)	100000(Typ)@±15V
Power Supply Type	Dual
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Pin Count	16
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	4
Package Width	4
PCB changed	16
