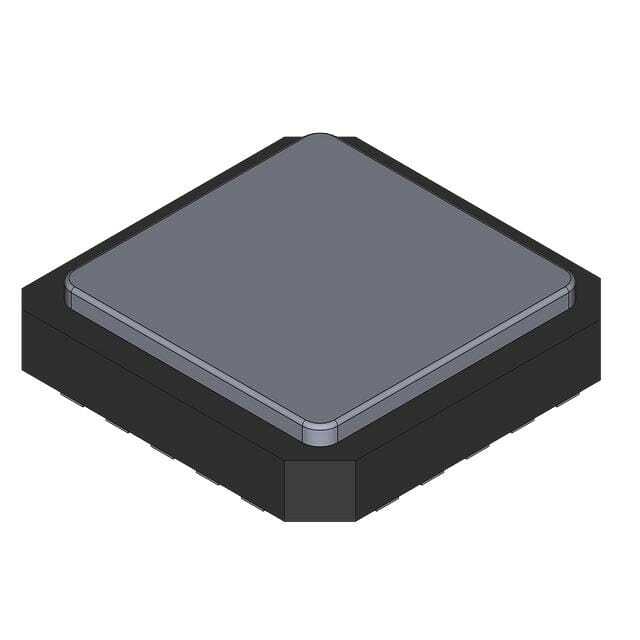

AD827SE/883B

SKU: 137858

Manufacturer: Analog Devices

Op Amp Dual High Speed Amplifier ±18V 20-Pin CLLCC Tube

2480 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	High Speed Amplifier
Manufacturer Type	High Speed Amplifier
Number of Channels per Chip	2
Maximum Input Offset Voltage (mV)	2@±5V
Minimum Dual Supply Voltage (V)	±4.5
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±18
Maximum Input Offset Current (uA)	0.3@±15V
Maximum Input Bias Current (uA)	7@±15V
Power Supply Type	Dual
Maximum Power Dissipation (mW)	1000
Typical Slew Rate (V/us)	200@±5V
Typical Input Noise Voltage Density (nV/rtHz)	15@±15V
Typical Voltage Gain (dB)	70.88
Typical Noninverting Input Current Noise Density (pA/rtHz)	1.5@±15V
Minimum PSRR (dB)	75
Minimum CMRR (dB)	80
Minimum CMRR Range (dB)	80 to 85
Typical Gain Bandwidth Product (MHz)	35
Typical Settling Time (ns)	65
Shut Down Support	No
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tube
Original Package	CLLCC
Pin Count	20
Standard Package Method	LLCC
Terminal Form	Surface Mount
Package Height	2.54(Max)
Package Length	9.09(Max)
Package Width	9.09(Max)
PCB changed	20
