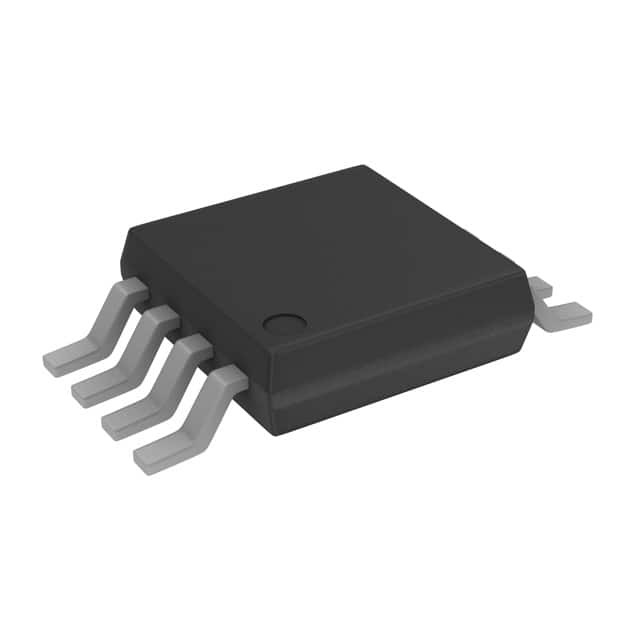

AD8278ARMZ-R7

SKU: 17571

Manufacturer: Analog Devices

SP Amp Difference Amplifier Single ±18V/36V 8-Pin MSOP T/R

1400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Difference Amplifier
Number of Elements per pcs	1
Number of Channels per Chip	1
Minimum CMRR Range (dB)	60 to 75
Minimum CMRR (dB)	74
Operating Supply Voltage-Max (V)	±18
Maximum Supply Voltage Range (V)	30 to 50
Minimum Single Supply Voltage (V)	2
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	36
Minimum Dual Supply Voltage (V)	±2
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±18
Maximum Supply Current (mA)	0.2@±15V
Maximum Input Resistance (MOhm)	0.12(Typ)@±5V
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Power Supply Type	Single
Original Package	MSOP
Pin Count	8
Standard Package Method	MSOP
Terminal Form	Surface Mount
Package Height	0.85
Package Length	3
Package Width	3
PCB changed	8
