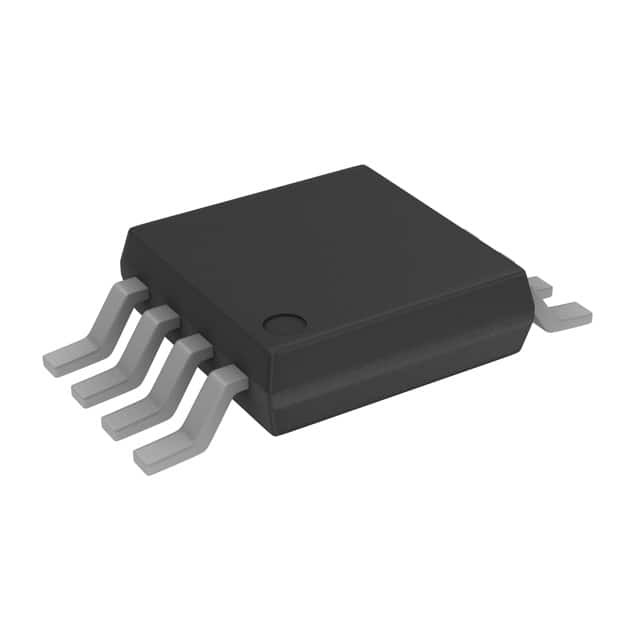

AD8208WBRMZ

SKU: 107672

Manufacturer: Analog Devices

SP Amp DIFF AMP Single 5.5V Automotive 8-Pin MSOP Tube

1760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	Yes
PPAP	Unknown
Type	Differential Amplifier
Number of Elements per pcs	2
Number of Channels per Chip	1
Maximum Voltage Gain Range (dB)	<35
Maximum Voltage Gain (dB)	26.02(Typ)
Minimum CMRR Range (dB)	75 to 85
Minimum CMRR (dB)	80
Minimum PSRR (dB)	66
Maximum Input Offset Voltage (mV)	2@5V
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Voltage Range (V)	5 to 7
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Maximum Input Bias Current (uA)	0.05@5V@-40C to 125C
Maximum Input Resistance (MOhm)	0.44@5V
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Power Supply Type	Single
Pin Count	8
Standard Package Method	MSOP
Original Package	MSOP
Terminal Form	Surface Mount
Package Height	0.85
Package Length	3
Package Width	3
PCB changed	8
