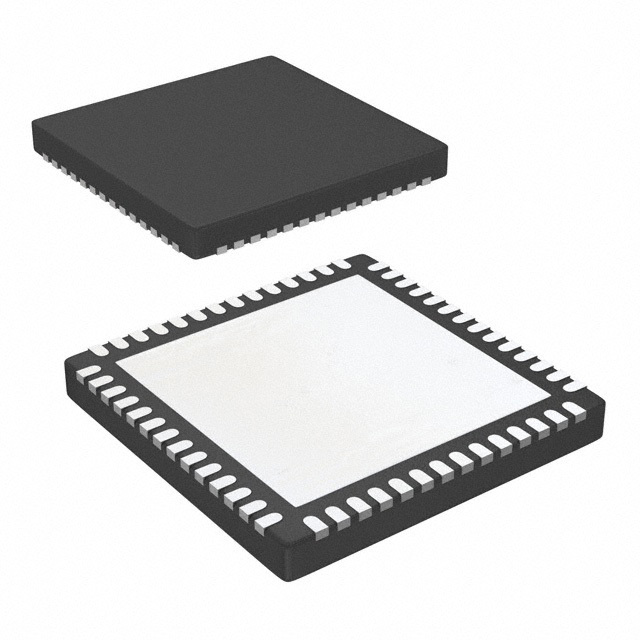

AD8190ACPZ-R7

SKU: 109365

Manufacturer: Analog Devices

Analog Multiplexer Single 2:1 56-Pin LFCSP EP T/R

410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Multiplexer
Number of Channels per Chip	1
Number of Inputs per Chip	1
Number of Outputs per Chip	1
Chip Enable Signals	No
Maximum Data Rate (Mbps)	1650(Min)
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	3.6
Maximum On Resistance (Ohm)	100(Typ)@3.3V
Maximum On Resistance Range (Ohm)	100 to 150
Power Supply Type	Single
Maximum Power Dissipation (mW)	1057
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	LFCSP EP
Pin Count	56
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	8
Package Width	8
PCB changed	56
