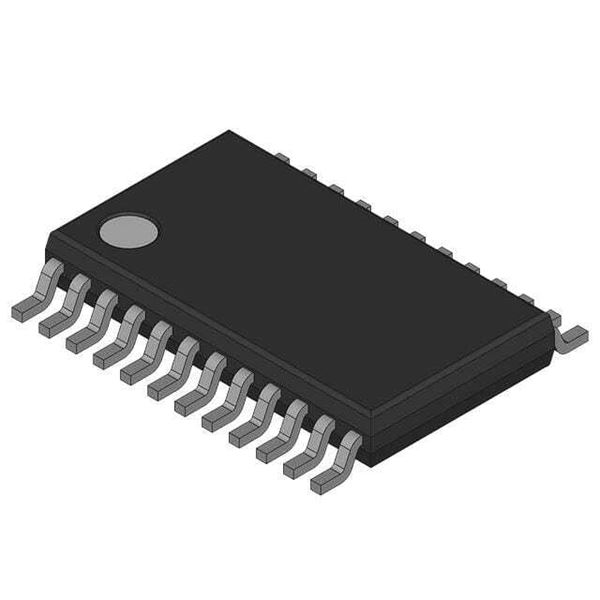

AD8183ARUZ-REEL7

SKU: 137848

Manufacturer: Analog Devices

Analog Multiplexer Triple 2:1 24-Pin TSSOP T/R

850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Analog Multiplexer
Number of Channels per Chip	3
Number of Inputs per Chip	6
Number of Outputs per Chip	3
Chip Enable Signals	No
Maximum Turn-On Time (ns)	20(Typ)@±5V
Maximum Turn-Off Time (ns)	45(Typ)@±5V
Maximum Frequency (25°C) @ Vcc (MHz)	590(Typ)@±5V
Input Signal Type	Single
Output Signal Type	Single
Minimum Dual Supply Voltage (V)	±4.5
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±5.5
Power Supply Type	Dual
Maximum Power Dissipation (mW)	1000
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	24
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	7.8
Package Width	4.4
PCB changed	24
