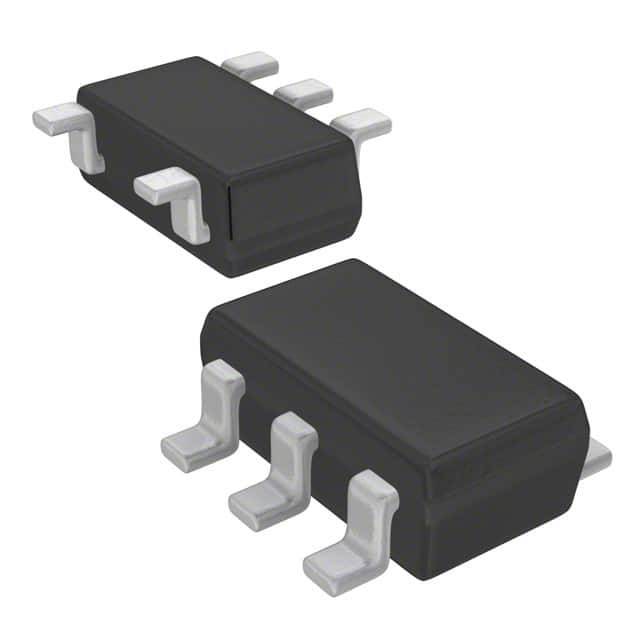

AD8065ARTZ-REEL

SKU: 93506

Manufacturer: Analog Devices

Op Amp Single High Performance Amplifier R-R O/P ±12V/24V 5-Pin SOT-23 T/R

2380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	High Performance Amplifier
Manufacturer Type	High Performance Amplifier
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Output
Process Technology	XFCB
Maximum Input Offset Voltage (mV)	1.5@5V
Minimum Single Supply Voltage (V)	5
Typical Single Supply Voltage (V)	9
Maximum Single Supply Voltage (V)	24
Minimum Dual Supply Voltage (V)	±2.5
Typical Dual Supply Voltage (V)	±9
Maximum Dual Supply Voltage (V)	±12
Maximum Input Offset Current (uA)	0.000005@5V
Maximum Input Bias Current (uA)	0.000125@5V@-40C to 85C
Maximum Quiescent Current (mA)	7@5V
Typical Output Current (mA)	35@±5V
Power Supply Type	Dual
Typical Slew Rate (V/us)	160@5V
Typical Input Noise Voltage Density (nV/rtHz)	7@5V
Typical Voltage Gain (dB)	113
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.0006@5V
Minimum PSRR (dB)	78
Minimum CMRR (dB)	74
Minimum CMRR Range (dB)	71 to 75
Typical Gain Bandwidth Product (MHz)	145
Typical Settling Time (ns)	60
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	5
Standard Package Method	SOT
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.15
Package Length	2.9
Package Width	1.6
PCB changed	5
