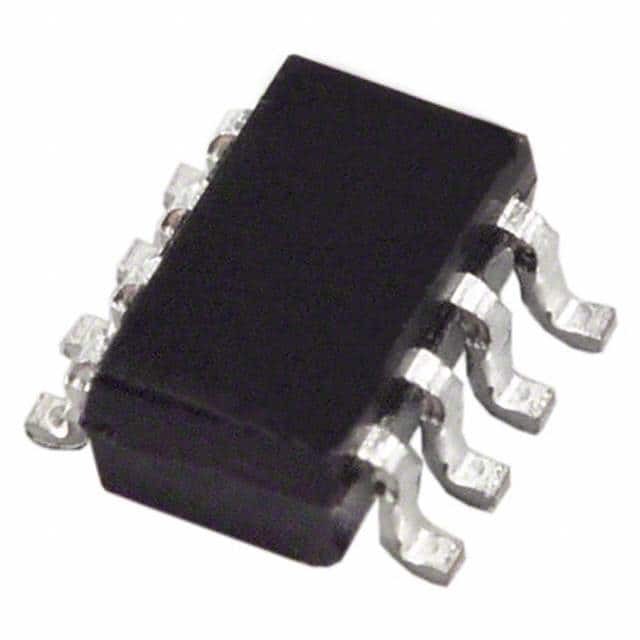

AD7999YRJZ-1500RL7

SKU: 17554

Manufacturer: Analog Devices

3/4 Channel Single ADC SAR 140ksps 8-bit Serial 8-Pin SOT-23 T/R

4120 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	8bit
Number of ADCs	1
Number of Input Channels	3/4
Sampling Rate	140ksps
Digital Interface Type	Serial (2-Wire, I2C)
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Supply
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Single
Input Voltage	5.5V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Maximum Power Dissipation (mW)	4.4
Integral Nonlinearity Error	±0.1LSB
Full Scale Error	±0.175LSB
No Missing Codes (bit)	8
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Supplier Temperature Grade	Industrial
Pin Count	8
Standard Package Method	SOT-23
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.15
Package Length	2.9
Package Width	1.6
PCB changed	8
