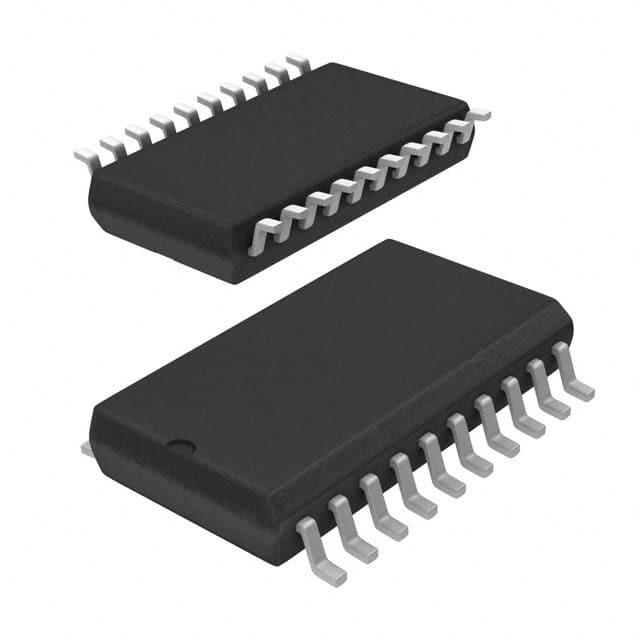

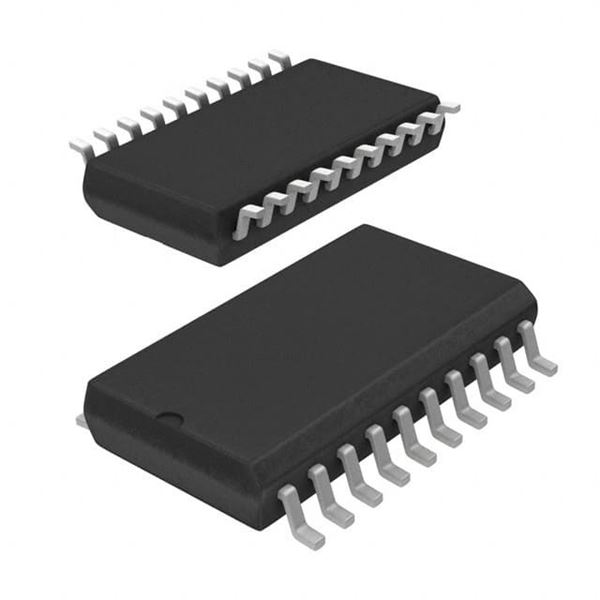

AD7849CRZ-REEL

SKU: 51293

Manufacturer: Analog Devices

DAC 1-CH R-2R 16-bit 20-Pin SOIC W T/R

1110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	R-2R
Resolution	16bit
Conversion Rate	143ksps
Number of DAC Channels	1
Number of Outputs per Chip	1
Maximum Settling Time (us)	10(Typ)
Digital Interface Type	Serial (3-Wire)
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	External
Minimum Dual Supply Voltage (V)	±14.25
Typical Dual Supply Voltage (V)	±15
Maximum Dual Supply Voltage (V)	±15.75
Power Supply Type	Dual
Maximum Power Dissipation (mW)	100(Typ)
Integral Nonlinearity Error	±8LSB
Full Scale Error	±16LSB
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	20
Standard Package Method	SOP
Original Package	SOIC W
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	13(Max)
Package Width	7.6(Max)
PCB changed	20
