AD7821KR

SKU: 10282

Manufacturer: Analog Devices

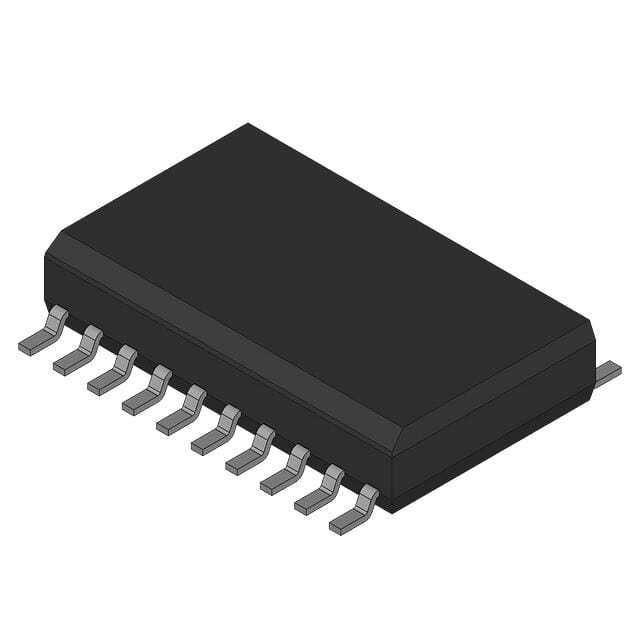

1-Channel Single ADC Semiflash 1Msps 8-bit Parallel 20-Pin SOIC W Tube

3500 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Semiflash
Resolution	8bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	1Msps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	External
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Dual
Input Voltage	±2.5V
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Minimum Dual Supply Voltage (V)	±4.75
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±5.25
Typical Power Dissipation (mW)	50
Maximum Power Dissipation (mW)	100.5
Full Scale Error	±1LSB
Signal to Noise Ratio	45dB(Min)
No Missing Codes (bit)	8
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Supplier Temperature Grade	Commercial
Pin Count	20
Standard Package Method	SOP
Original Package	SOIC W
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	13(Max)
Package Width	7.6(Max)
PCB changed	20
