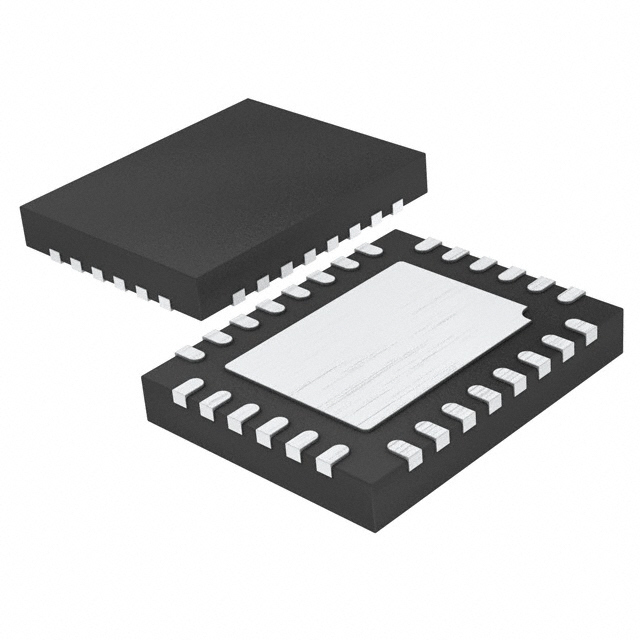

AD7768-1BCPZ

SKU: 128949

Manufacturer: Analog Devices

1-Channel Single ADC Delta-Sigma 1.024Msps 24-bit Serial 28-Pin LFCSP EP Tray

2270 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Delta-Sigma
Resolution	24bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	1.024Msps
Digital Interface Type	Serial (3-Wire, 4-Wire, SPI)
Input Type	Voltage
Input Signal Type	Pseudo-Differential
Voltage Reference	External
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Single
Input Voltage	±4.096V
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	3.3/5
Maximum Single Supply Voltage (V)	5.5
Typical Power Dissipation (mW)	46.1
Maximum Power Dissipation (mW)	57.5
Integral Nonlinearity Error	±7ppm of FSR
Full Scale Error	±70ppm of FSR
Signal to Noise Ratio	111dB(Typ)
No Missing Codes (bit)	24
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tray
Original Package	LFCSP EP
Pin Count	28
Terminal Form	Surface Mount
Package Height	0.73
Package Length	5
Package Width	4
