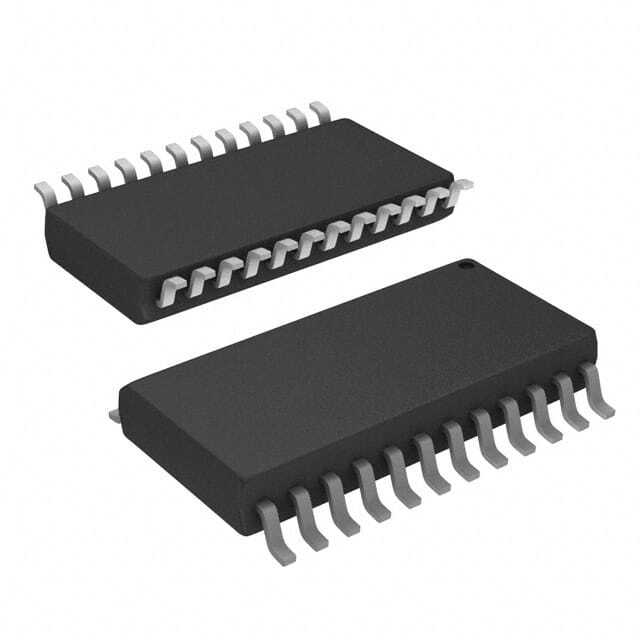

AD7714ARZ-5

SKU: 95223

Manufacturer: Analog Devices

5-Channel Single ADC Delta-Sigma 1ksps 24-bit Serial 24-Pin SOIC W Tube

220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Delta-Sigma
Resolution	24bit
Number of ADCs	1
Number of Input Channels	5
Sampling Rate	1ksps
Digital Interface Type	Serial (3-Wire, SPI, QSPI, Microwire)
Input Type	Voltage
Input Signal Type	Pseudo-Differential
Voltage Reference	External
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Analog and Digital
Input Voltage	2.5V
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Typical Power Dissipation (mW)	5
Maximum Power Dissipation (mW)	7
Integral Nonlinearity Error	±0.0015%FSR
Full Scale Error	±0.0015%FSR
No Missing Codes (bit)	24
Sample and Hold	No
Single-Ended Input	No
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Supplier Temperature Grade	Commercial
Pin Count	24
Standard Package Method	SOP
Original Package	SOIC W
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	15.6(Max)
Package Width	7.6(Max)
PCB changed	24
