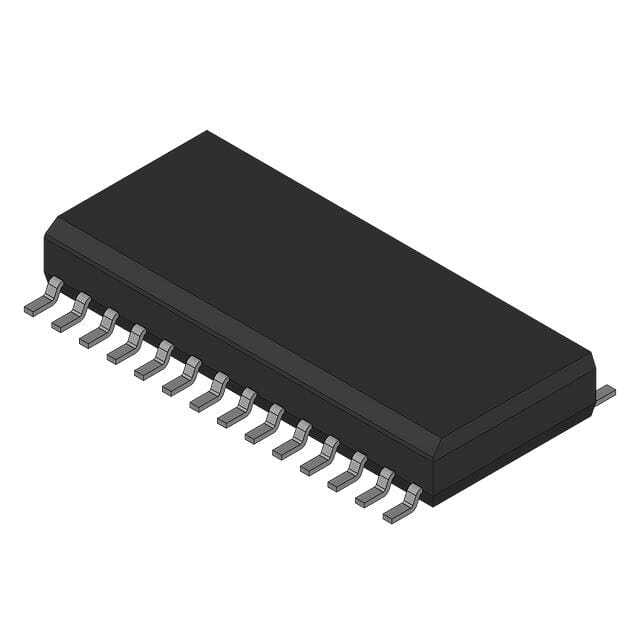

AD7669ARZ

SKU: 74057

Manufacturer: Analog Devices

Data Acquisition System Single ADC Dual DAC 8bit 28-Pin SOIC W Tube

3320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	ADC
Resolution (bit)	8
Data Rate (Msps)	0.5
Power Supply Type	Single
Number of ADCs	1
Number of DACs	2
Digital Interface Type	Parallel
Maximum Settling Time (us)	4
Input Logic	CMOS
Output Voltage Range (V)	0 to 1.25
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Minimum Dual Supply Voltage (V)	±4.75
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±5.25
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Supplier Temperature Grade	Industrial
Pin Count	28
Standard Package Method	SOP
Original Package	SOIC W
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	18.1(Max)
Package Width	7.6(Max)
PCB changed	28
