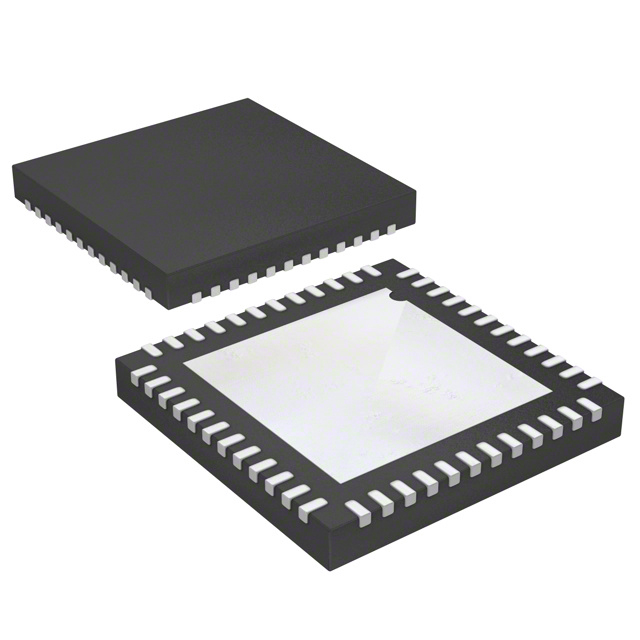

    AD7667ACPZ

    SKU: 15834
    Manufacturer: Analog Devices
    1-Channel Single ADC SAR 1Msps 16-bit Parallel/Serial 48-Pin LFCSP EP Tray
    780 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8542.39.00.01
    Automotive No
    PPAP No
    Converter Type General Purpose
    Architecture SAR
    Resolution 16bit
    Number of ADCs 1
    Number of Input Channels 1
    Sampling Rate 1Msps
    Digital Interface Type Parallel
    Input Type Voltage
    Input Signal Type Pseudo-Differential
    Voltage Reference Internal
    Polarity of Input Voltage Unipolar
    Voltage Supply Source Analog and Digital
    Input Voltage 2.5V
    Minimum Single Supply Voltage (V) 4.75
    Typical Single Supply Voltage (V) 5
    Maximum Single Supply Voltage (V) 5.25
    Typical Power Dissipation (mW) 133
    Maximum Power Dissipation (mW) 145
    Integral Nonlinearity Error ±2LSB
    Full Scale Error ±0.08%FSR
    Signal to Noise Ratio 89.2dB(Typ)
    No Missing Codes (bit) 16
    Sample and Hold Yes
    Single-Ended Input No
    Digital Supply Support Yes
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Packing Method Tray
    Original Package LFCSP EP
    Pin Count 48
    Standard Package Method CSP
    Terminal Form Surface Mount
    Package Height 0.83
    Package Length 7
    Package Width 7
    PCB changed 48
