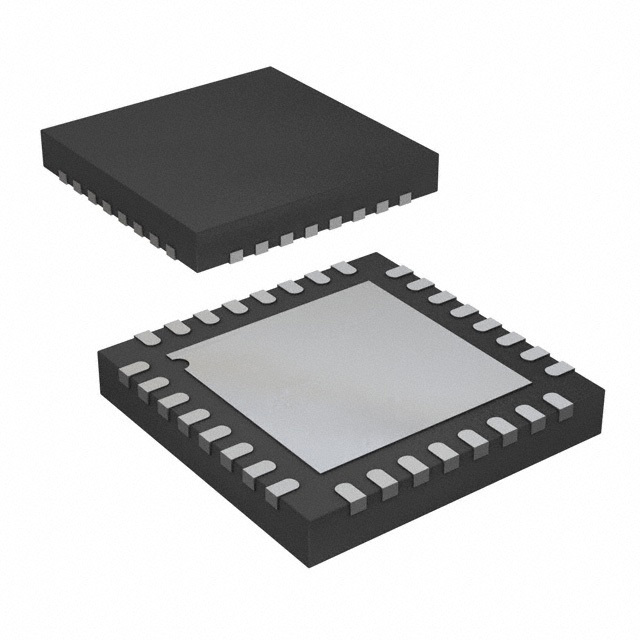

AD7626BCPZ-RL7

SKU: 37053

Manufacturer: Analog Devices

1-Channel Single ADC SAR 10Msps 16-bit Serial 32-Pin LFCSP EP T/R

3900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991c.4.
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	16bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	10Msps
Digital Interface Type	Serial
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Analog and Digital
Input Voltage	±4.096V
Minimum Single Supply Voltage (V)	2.37/4.75
Typical Single Supply Voltage (V)	2.5/5
Maximum Single Supply Voltage (V)	2.63/5.25
Typical Power Dissipation (mW)	150
Maximum Power Dissipation (mW)	170
Integral Nonlinearity Error	±1.5LSB
Full Scale Error	20LSB
Signal to Noise Ratio	91.5dB(Typ)
No Missing Codes (bit)	16
Sample and Hold	No
Single-Ended Input	No
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Supplier Temperature Grade	Commercial
Pin Count	32
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	5
Package Width	5
PCB changed	32
