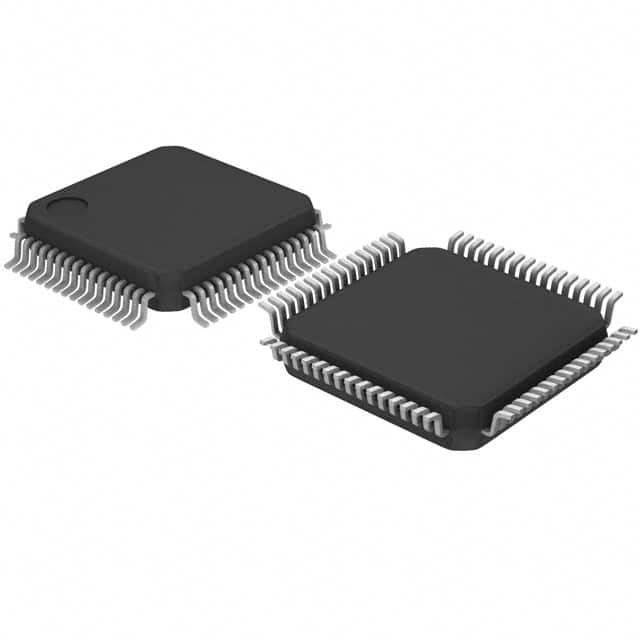

AD7606BBSTZ

SKU: 157383

Manufacturer: Analog Devices

8-Channel Octal ADC SAR 800ksps 16-bit Parallel/Serial (3-Wire, SPI) 64-Pin LQFP Tray

2260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	16bit
Number of ADCs	8
Number of Input Channels	8
Sampling Rate	800ksps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Internal
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Single
Input Voltage	±2.5V/±5V/±10V
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Typical Power Dissipation (mW)	230
Maximum Power Dissipation (mW)	255
Integral Nonlinearity Error	±2.5LSB
Full Scale Error	±45LSB
Signal to Noise Ratio	93.5dB(Typ)
No Missing Codes (bit)	16
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tray
Original Package	LQFP
Pin Count	64
Terminal Form	Surface Mount
Package Height	1.4
Package Length	10
Package Width	10
