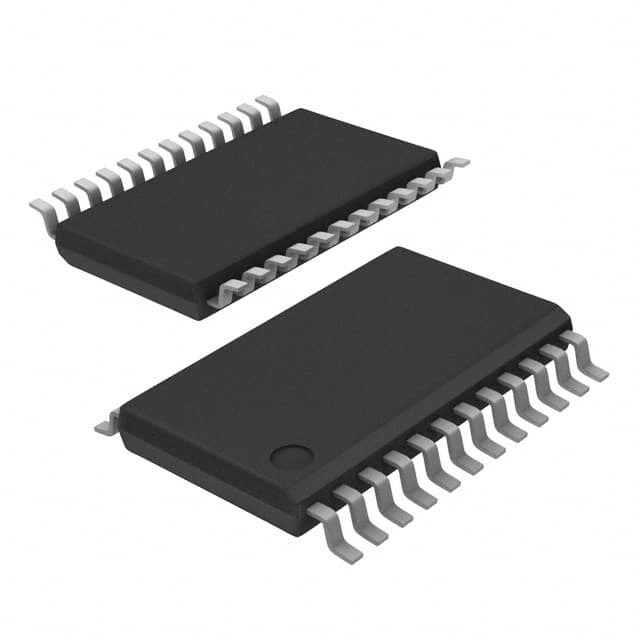

AD7397ARUZ-REEL7

SKU: 29953

Manufacturer: Analog Devices

DAC 2-CH R-2R 10-bit Automotive 24-Pin TSSOP T/R

2420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Unknown
PPAP	Unknown
Converter Type	General Purpose
Architecture	R-2R
Resolution	10bit
Conversion Rate	17ksps
Number of DAC Channels	2
Number of Outputs per Chip	2
Maximum Settling Time (us)	70(Typ)
Digital Interface Type	Parallel
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	External
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Maximum Power Dissipation (mW)	1
Integral Nonlinearity Error	±2LSB
Full Scale Error	±48mV
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Supplier Temperature Grade	Extended Industrial
Pin Count	24
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	7.8
Package Width	4.4
PCB changed	24
