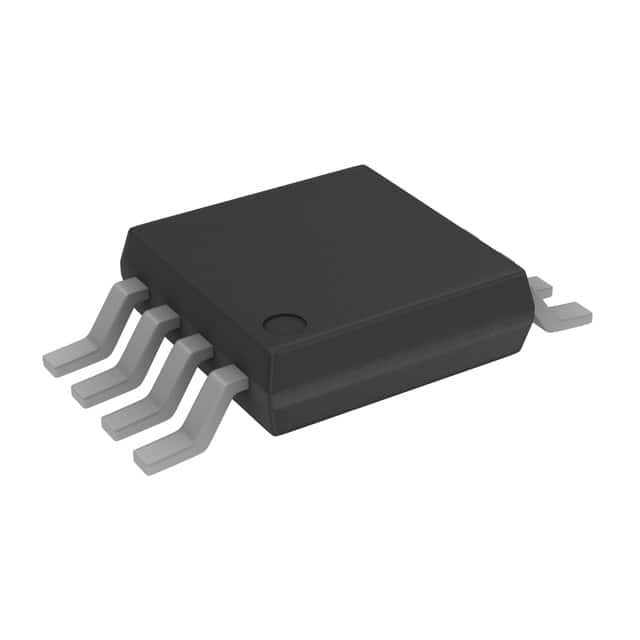

AD7303BRMZ-REEL7

SKU: 95204

Manufacturer: Analog Devices

DAC 2-CH Current Steering 8-bit 8-Pin MSOP T/R

6700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Current Steering
Resolution	8bit
Conversion Rate	833ksps
Number of DAC Channels	2
Number of Outputs per Chip	2
Maximum Settling Time (us)	2
Digital Interface Type	Serial (3-Wire, SPI, QSPI, Microwire)
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	Internal
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Maximum Power Dissipation (mW)	450
Integral Nonlinearity Error	±1LSB
Full Scale Error	-0.5LSB(Typ)
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Supplier Temperature Grade	Commercial
Pin Count	8
Standard Package Method	MSOP
Original Package	MSOP
Terminal Form	Surface Mount
Package Height	0.85
Package Length	3
Package Width	3
PCB changed	8
