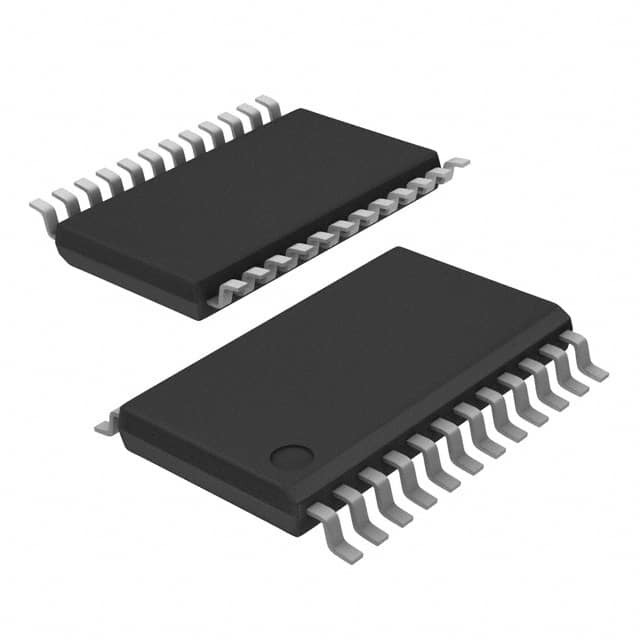

AD7172-2BRUZ

SKU: 17523

Manufacturer: Analog Devices

4-Channel Single ADC Delta-Sigma 31.25ksps 24-bit Serial Medical 24-Pin TSSOP Tube

1690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Delta-Sigma
Resolution	24bit
Number of ADCs	1
Number of Input Channels	4
Sampling Rate	31.25ksps
Digital Interface Type	Serial (3-Wire, 4-Wire, SPI, QSPI, Microwire)
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Internal
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Single
Input Voltage	±2.5V
Minimum Single Supply Voltage (V)	2/3
Typical Single Supply Voltage (V)	2.5/3.3
Maximum Single Supply Voltage (V)	5.5
Typical Power Dissipation (mW)	19.1
Maximum Power Dissipation (mW)	25.4
Integral Nonlinearity Error	±5ppm of FSR
Full Scale Error	±45ppm/FSR
No Missing Codes (bit)	24
Sample and Hold	No
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tube
Original Package	TSSOP
Pin Count	24
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	7.8
Package Width	4.4
PCB changed	24
