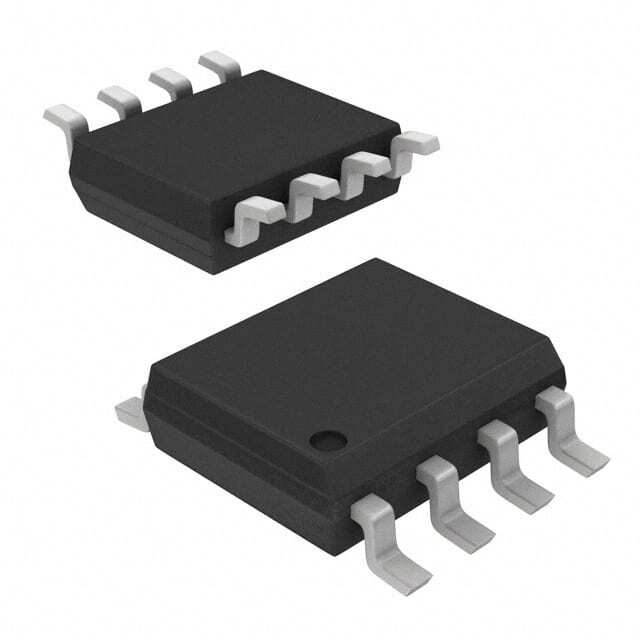

AD712TRZ-EP

SKU: 114754

Manufacturer: Analog Devices

Op Amp Dual Precision Amplifier ±18V 8-Pin SOIC N Tube

2320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Precision Amplifier
Manufacturer Type	Precision Amplifier
Number of Channels per Chip	2
Process Technology	BiFET
Maximum Input Offset Voltage (mV)	3@±15V
Minimum Dual Supply Voltage (V)	±4.5
Typical Dual Supply Voltage (V)	±15
Maximum Dual Supply Voltage (V)	±18
Maximum Input Offset Current (uA)	0.000025@±15V
Maximum Input Bias Current (uA)	0.0001@±15V
Typical Output Current (mA)	25@±15V
Power Supply Type	Dual
Typical Slew Rate (V/us)	20@±15V
Typical Input Noise Voltage Density (nV/rtHz)	45@±15V
Typical Voltage Gain (dB)	103.52(Min)
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.01@±15V
Minimum CMRR (dB)	70
Minimum CMRR Range (dB)	70 to 71
Typical Gain Bandwidth Product (MHz)	3(Min)
Typical Settling Time (ns)	1000
Shut Down Support	No
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tube
Pin Count	8
Standard Package Method	SOP
Original Package	SOIC N
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
