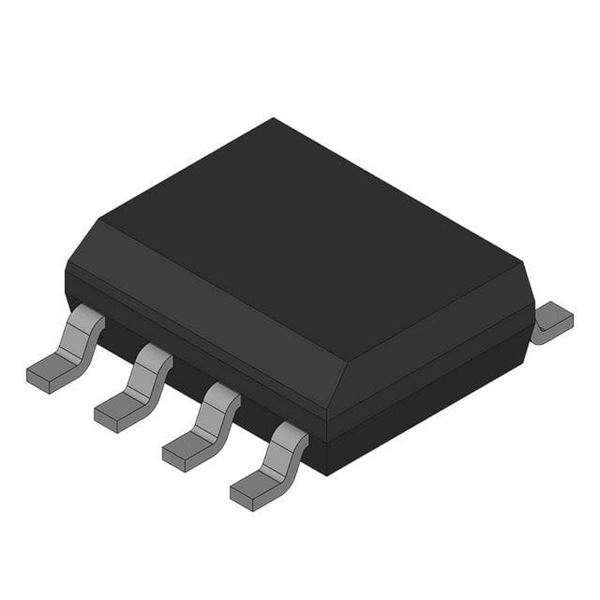

AD706JRZ

SKU: 45853

Manufacturer: Analog Devices

Op Amp Dual Low Power Amplifier ±18V 8-Pin SOIC N Tube

6460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Low Power Amplifier
Manufacturer Type	Low Power Amplifier
Number of Channels per Chip	2
Process Technology	Bipolar
Maximum Input Offset Voltage (mV)	0.1@±15V
Minimum Dual Supply Voltage (V)	±2
Typical Dual Supply Voltage (V)	±15
Maximum Dual Supply Voltage (V)	±18
Maximum Input Offset Current (uA)	0.00025@±15V
Maximum Input Bias Current (uA)	0.00025@±15V
Power Supply Type	Dual
Maximum Power Dissipation (mW)	650
Typical Slew Rate (V/us)	0.15@±15V
Typical Input Noise Voltage Density (nV/rtHz)	17@±15V
Typical Voltage Gain (dB)	126.02
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.05@±15V
Minimum PSRR (dB)	110
Minimum CMRR (dB)	110
Minimum CMRR Range (dB)	105 to 115
Typical Gain Bandwidth Product (MHz)	0.8
Shut Down Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tube
Pin Count	8
Standard Package Method	SOP
Original Package	SOIC N
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
