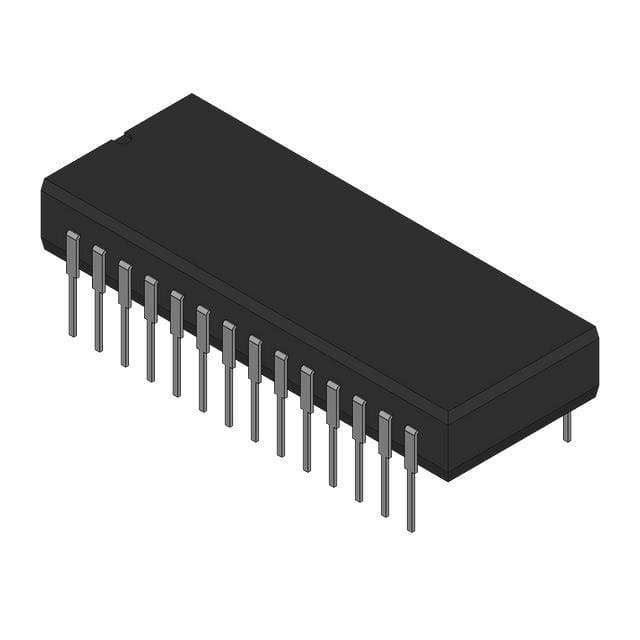

AD676TD/883B

SKU: 150264

Manufacturer: Analog Devices

1-Channel Single ADC SAR 100ksps 16-bit Parallel 28-Pin CDIP Tube

3020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001.a.2.c
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Converter Type	Audio
Architecture	SAR
Resolution	16bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	100ksps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	External
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Dual
Input Voltage	±10V
Minimum Dual Supply Voltage (V)	±11.4
Typical Dual Supply Voltage (V)	±12
Maximum Dual Supply Voltage (V)	±12.6
Maximum Power Dissipation (mW)	480
Integral Nonlinearity Error	±1LSB
No Missing Codes (bit)	16
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	Yes
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tube
Supplier Temperature Grade	Military
Original Package	CDIP
Pin Count	28
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	5.72(Max) - 0.38(Min)
Package Length	37.85(Max)
Package Width	15.49(Max)
PCB changed	28
