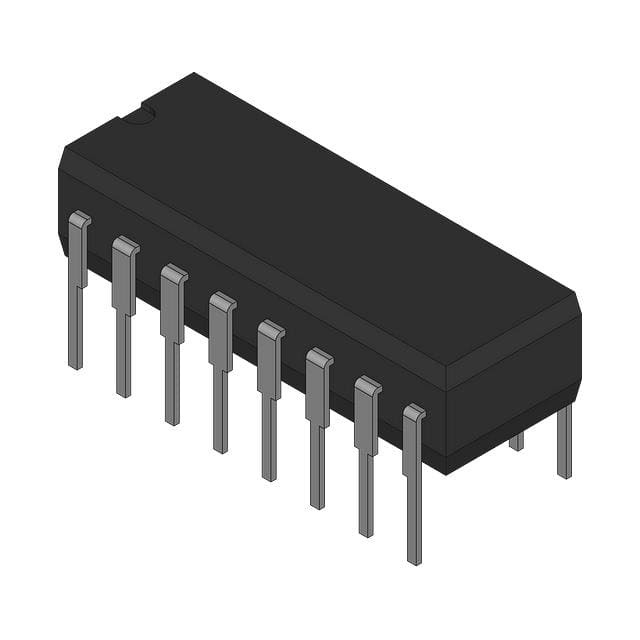

AD652BQ

SKU: 74036

Manufacturer: Analog Devices

VFC Sync 2MHz 16-Pin CDIP Tube

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Converter Function	VFC
Converter Type	Synchronous
Full Scale Frequency (kHz)	2000
Linearity Error	±0.02%FSR
Minimum Single Supply Voltage (V)	12
Typical Single Supply Voltage (V)	15
Maximum Single Supply Voltage (V)	36
Minimum Dual Supply Voltage (V)	±6
Typical Dual Supply Voltage (V)	±15
Maximum Dual Supply Voltage (V)	±18
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tube
Pin Count	16
Original Package	CDIP
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.56(Max)
Package Length	21.34(Max)
Package Width	7.87(Max)
PCB changed	16
