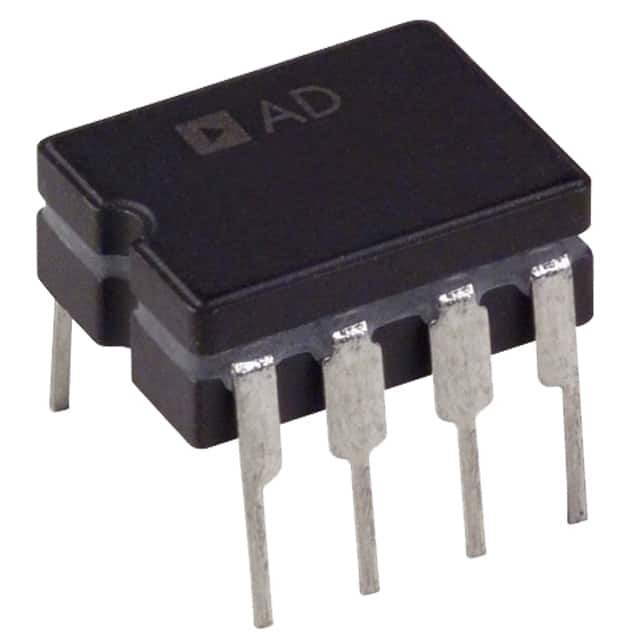

AD621SQ/883B

SKU: 150262

Manufacturer: Analog Devices

INST Amp Single ±18V 8-Pin CDIP Tube

3150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Number of Channels per Chip	1
Maximum Voltage Gain (dB)	100
Minimum CMRR (dB)	93
Minimum CMRR Range (dB)	85 to 95
Minimum PSRR (dB)	95
Maximum Input Offset Voltage (mV)	0.25@±15V
Operating Supply Voltage-Max (V)	±18
Maximum Supply Voltage Range (V)	30 to 50
Minimum Dual Supply Voltage (V)	±2.3
Typical Dual Supply Voltage (V)	±15
Maximum Dual Supply Voltage (V)	±18
Maximum Input Bias Current (uA)	0.002@±15V
Maximum Input Resistance (MOhm)	10000(Typ)@±15V
Power Supply Type	Dual
Maximum Power Dissipation (mW)	650
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tube
Original Package	CDIP
Pin Count	8
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.56(Max)
Package Length	10.29(Max)
Package Width	7.87(Max)
PCB changed	8
