    PrevAD524SE/883B
    NextAD620AR

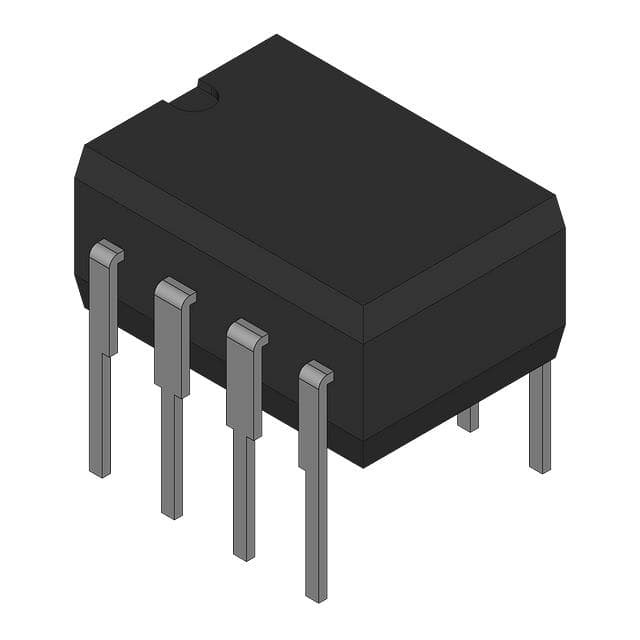

    AD620AN

    SKU: 151961
    Manufacturer: Analog Devices
    INST Amp Single ±18V 8-Pin PDIP N Tube
    Download sample
    Request Free Samples
    540 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Not Compliant
    ECCN (US) EAR99
    Part Status Obsolete
    HTS 8542.33.00.01
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive No
    PPAP No
    Number of Channels per Chip 1
    Minimum CMRR (dB) 73
    Minimum CMRR Range (dB) 60 to 75
    Maximum Input Offset Voltage (mV) 0.125@±15V
    Operating Supply Voltage-Max (V) ±18
    Maximum Supply Voltage Range (V) 30 to 50
    Minimum Dual Supply Voltage (V) ±2.3
    Typical Dual Supply Voltage (V) ±12
    Maximum Dual Supply Voltage (V) ±18
    Maximum Input Bias Current (uA) 0.002@±15V
    Maximum Input Resistance (MOhm) 10000(Typ)@±15V
    Power Supply Type Dual
    Maximum Power Dissipation (mW) 650
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Supplier Temperature Grade Industrial
    Packing Method Tube
    Original Package PDIP N
    Pin Count 8
    Standard Package Method DIP
    Terminal Form Through Hole
    Package Height 3.3
    Package Length 9.27
    Package Width 6.35
    PCB changed 8
