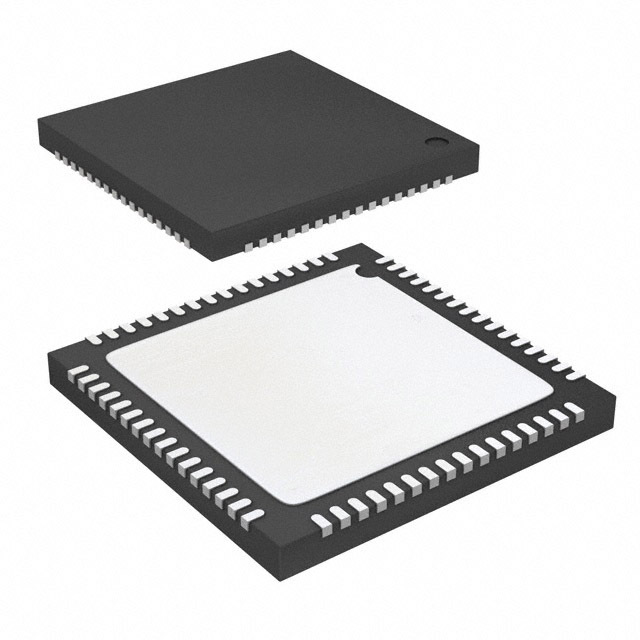

AD5755BCPZ

SKU: 65329

Manufacturer: Analog Devices

DAC 4-CH Segment 16-bit 64-Pin LFCSP EP Tray

180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Segment
Resolution	16bit
Number of DAC Channels	4
Number of Outputs per Chip	8
Maximum Settling Time (us)	15(Typ)
Digital Interface Type	Serial (3-Wire, SPI, QSPI, Microwire)
Output Type	Current
Output Polarity	Unipolar
Voltage Reference	Internal
Minimum Dual Supply Voltage (V)	-10.8/4.5/9
Typical Dual Supply Voltage (V)	±15/5
Maximum Dual Supply Voltage (V)	-26.4/5.5/33
Power Supply Type	Dual
Maximum Power Dissipation (mW)	173(Typ)
Integral Nonlinearity Error	±0.008%FSR
Full Scale Error	±0.14%FSR
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Supplier Temperature Grade	Industrial
Original Package	LFCSP EP
Pin Count	64
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	9
Package Width	9
PCB changed	64
