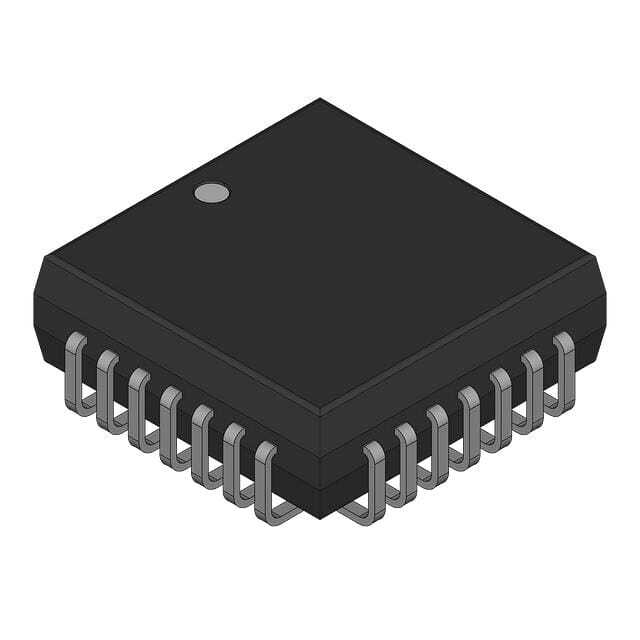

AD569JPZ-REEL

SKU: 67039

Manufacturer: Analog Devices

DAC 1-CH Segment 16-bit 28-Pin PLCC T/R

3810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Segment
Resolution	16bit
Number of DAC Channels	1
Number of Outputs per Chip	1
Maximum Settling Time (us)	6
Digital Interface Type	Parallel
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	External
Minimum Dual Supply Voltage (V)	±10.8
Typical Dual Supply Voltage (V)	±12
Maximum Dual Supply Voltage (V)	±13.2
Power Supply Type	Dual
Maximum Power Dissipation (mW)	1000
Integral Nonlinearity Error	±0.04%FSR
Full Scale Error	±0.75mV
Digital Supply Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tape and Reel
Supplier Temperature Grade	Commercial
Pin Count	28
Standard Package Method	LCC
Original Package	PLCC
Terminal Form	Surface Mount
Package Height	3.94(Max)
Package Length	11.58(Max)
Package Width	11.58(Max)
PCB changed	28
