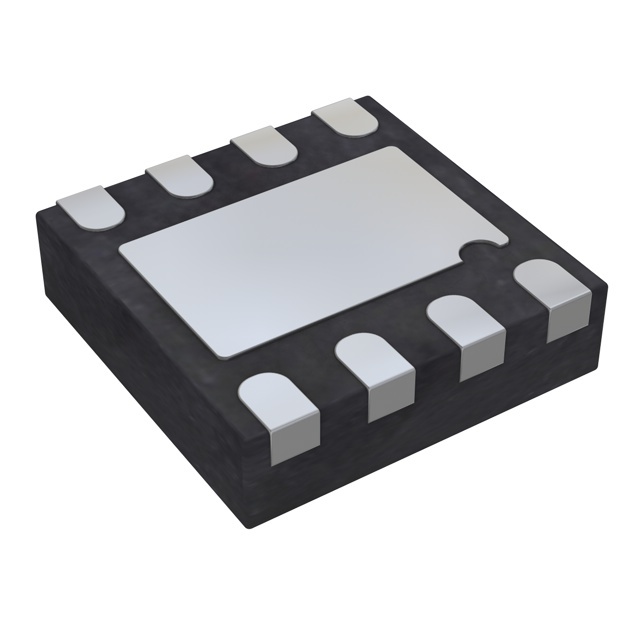

AD5683RACPZ-RL7

SKU: 95181

Manufacturer: Analog Devices

DAC 1-CH Segment 16-bit 8-Pin LFCSP EP T/R

1270 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Segment
Resolution	16bit
Number of DAC Channels	1
Number of Outputs per Chip	1
Maximum Settling Time (us)	7
Digital Interface Type	Serial (3-Wire, SPI)
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	Internal
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Integral Nonlinearity Error	±8LSB
Full Scale Error	±0.075%FSR
Signal to Noise Ratio	90dB(Typ)
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Supplier Temperature Grade	Industrial
Pin Count	8
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.55
Package Length	2
Package Width	2
PCB changed	8
