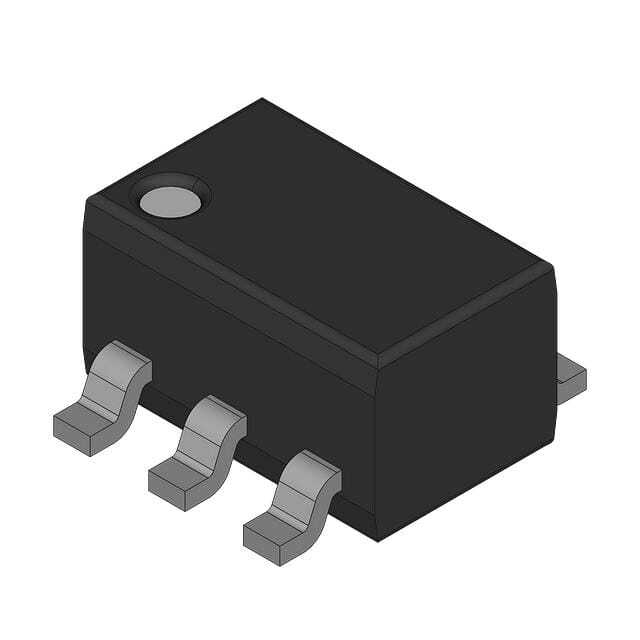

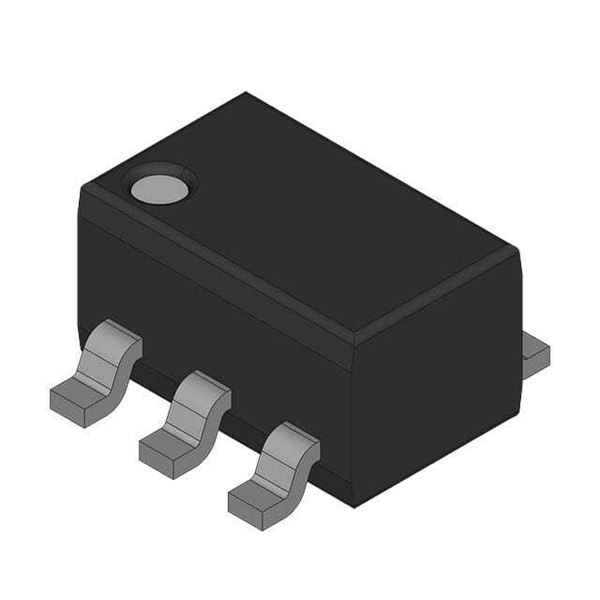

AD5612YKSZ-2REEL7

SKU: 51269

Manufacturer: Analog Devices

DAC 1-CH Resistor-String 10-bit Automotive 6-Pin SC-70 T/R

3670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Unknown
PPAP	Unknown
Converter Type	General Purpose
Architecture	Resistor-String
Resolution	10bit
Conversion Rate	1.7Msps
Number of DAC Channels	1
Number of Outputs per Chip	1
Maximum Settling Time (us)	10
Digital Interface Type	Serial (2-Wire, I2C)
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	Supply
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Maximum Power Dissipation (mW)	0.5(Typ)
Integral Nonlinearity Error	±0.5LSB
Full Scale Error	±0.037%FSR
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Pin Count	6
Standard Package Method	SOT-323
Original Package	SC-70
Terminal Form	Surface Mount
Package Height	0.9
Package Length	2
Package Width	1.25
PCB changed	6
