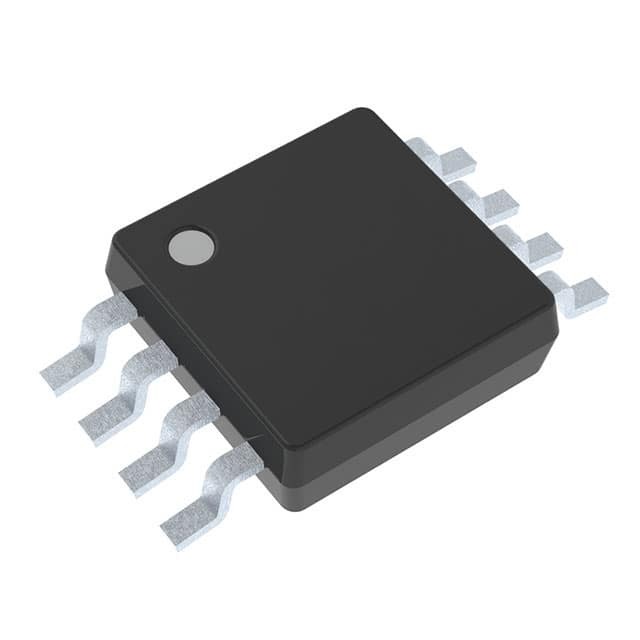

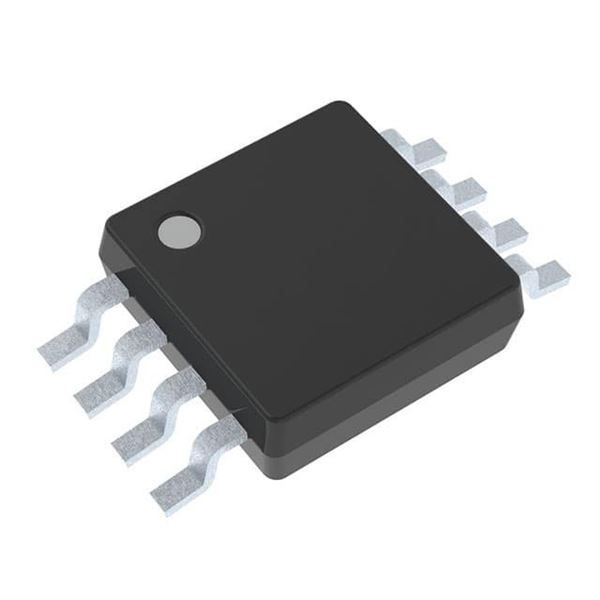

AD5441BRMZ-REEL7

SKU: 51267

Manufacturer: Analog Devices

DAC 1-CH R-2R 12-bit 8-Pin MSOP T/R

4390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	R-2R
Resolution	12bit
Conversion Rate	5Msps
Number of DAC Channels	1
Number of Outputs per Chip	1
Maximum Settling Time (us)	0.5
Digital Interface Type	Serial (3-Wire)
Output Type	Current
Voltage Reference	External
Minimum Single Supply Voltage (V)	2.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Maximum Power Dissipation (mW)	0.0055
Integral Nonlinearity Error	±0.5LSB
Full Scale Error	±1LSB
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Supplier Temperature Grade	Extended Industrial
Pin Count	8
Standard Package Method	MSOP
Original Package	MSOP
Terminal Form	Surface Mount
Package Height	0.85
Package Length	3
Package Width	3
PCB changed	8
