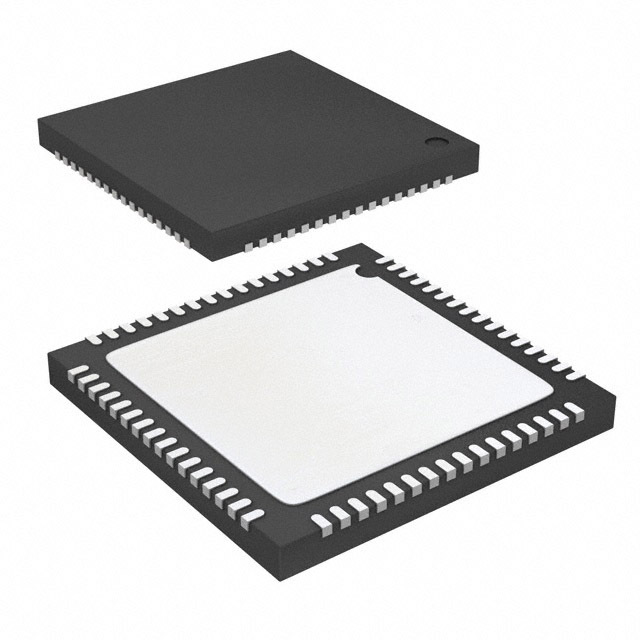

AD5392BCPZ-5

SKU: 44112

Manufacturer: Analog Devices

DAC 8-CH Resistor-String 14-bit 64-Pin LFCSP EP Tray

1950 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Resistor-String
Resolution	14bit
Conversion Rate	125ksps
Number of DAC Channels	8
Number of Outputs per Chip	8
Maximum Settling Time (us)	8
Digital Interface Type	Serial (3-Wire, I2C, SPI, QSPI, Microwire)
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	Internal
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Analog and Digital
Maximum Power Dissipation (mW)	20
Integral Nonlinearity Error	±3LSB
Full Scale Error	±0.06%FSR
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Supplier Temperature Grade	Commercial
Pin Count	64
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	9
Package Width	9
PCB changed	64
