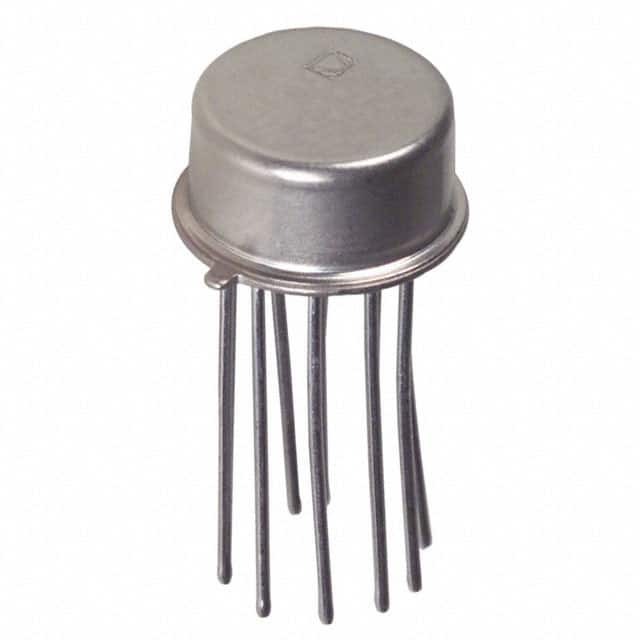

AD536ASH

SKU: 93465

Manufacturer: Analog Devices

RMS to DC Converter 125V 2000uA 2300kHz 10-Pin TO-100 Tube

210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
3dB Bandwidth (kHz)	2300
Typical Output Voltage Swing (V)	125
Maximum Output Resistance (kOhm)	30
Minimum Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	36
Minimum Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±18
Minimum RMS Input Voltage (Vrms)	0
Maximum RMS Input Voltage (Vrms)	7
Maximum Supply Current (uA)	2000(Typ)
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Original Package	TO-100
Pin Count	10
Diameter	9.4(Max)
Terminal Form	Through Hole
Package Height	4.7(Max)
PCB changed	10
