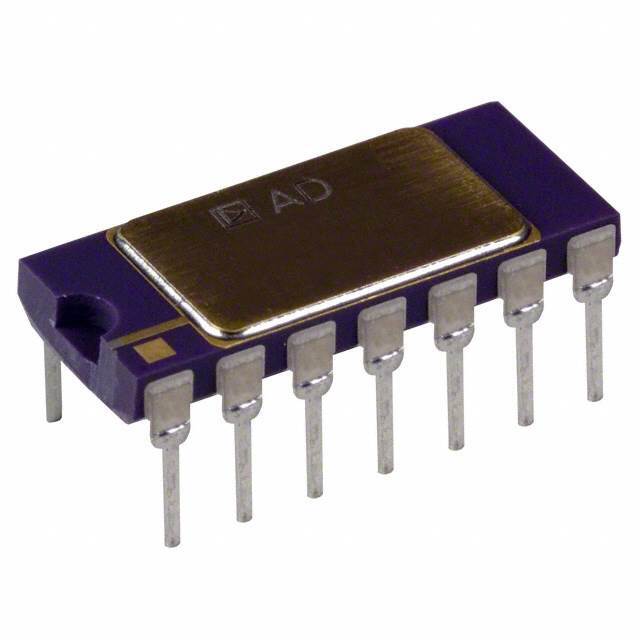

AD536AJD

SKU: 151947

Manufacturer: Analog Devices

RMS to DC Converter 125V 2000uA 2300kHz 14-Pin SBCDIP Tube

290 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
3dB Bandwidth (kHz)	2300
Typical Output Voltage Swing (V)	125
Maximum Output Resistance (kOhm)	30
Minimum Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	36
Minimum Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±18
Minimum RMS Input Voltage (Vrms)	0
Maximum RMS Input Voltage (Vrms)	7
Maximum Supply Current (uA)	2000(Typ)
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tube
Original Package	SBCDIP
Pin Count	14
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.56(Max)
Package Length	19.43(Max)
Package Width	7.87(Max)
PCB changed	14
