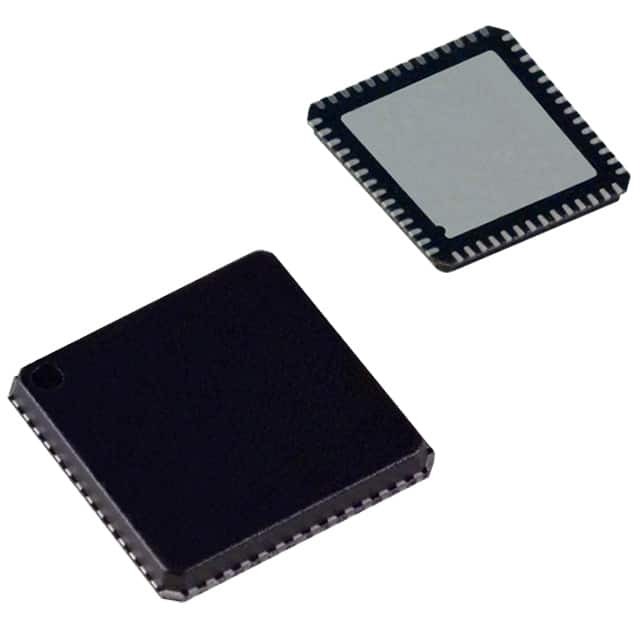

AD5360BCPZ-REEL7

SKU: 107632

Manufacturer: Analog Devices

DAC 16-CH Resistor-String 16-bit 56-Pin LFCSP EP T/R

1620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Resistor-String
Resolution	16bit
Number of DAC Channels	16
Number of Outputs per Chip	16
Maximum Settling Time (us)	30
Digital Interface Type	Serial (4-Wire, SPI, QSPI, Microwire)
Output Type	Voltage
Output Polarity	Bipolar
Voltage Reference	External
Minimum Dual Supply Voltage (V)	-4.5/8
Typical Dual Supply Voltage (V)	±9/-5
Maximum Dual Supply Voltage (V)	±16.5
Power Supply Type	Dual
Maximum Power Dissipation (mW)	245
Integral Nonlinearity Error	±4LSB
Full Scale Error	±20mV
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Supplier Temperature Grade	Industrial
Pin Count	56
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	8
Package Width	8
PCB changed	56
