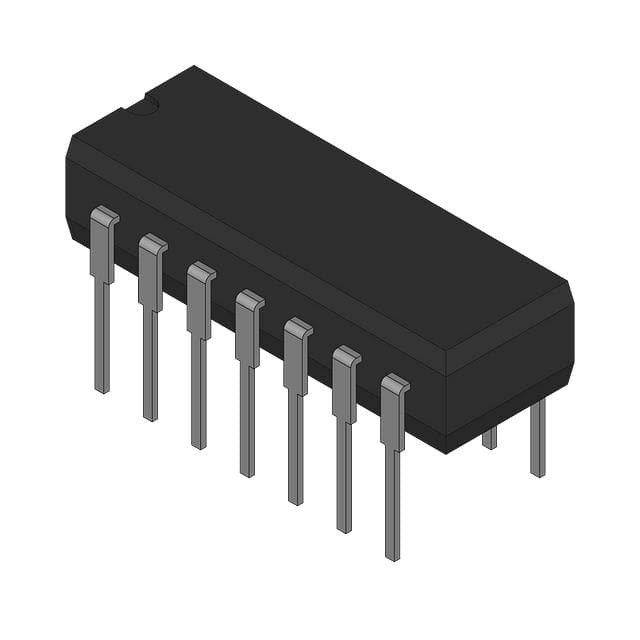

AD534SD/883B

SKU: 151946

Manufacturer: Analog Devices

Analog Multiplier/Divider 4Bit 14-Pin SBCDIP Tube

1120 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Function	Analog Multiplier/Divider
Number of Bits	4
Number of Elements per pcs	4
Output Type	Single
Minimum Dual Supply Voltage (V)	±8
Maximum Dual Supply Voltage (V)	±22
Typical Dual Supply Voltage (V)	±15
Maximum Power Dissipation (mW)	500
Power Supply Type	Dual
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tube
Original Package	SBCDIP
Pin Count	14
Terminal Form	Through Hole
Package Height	3.56(Max)
Package Length	19.43(Max)
Package Width	7.87(Max)
PCB changed	14
