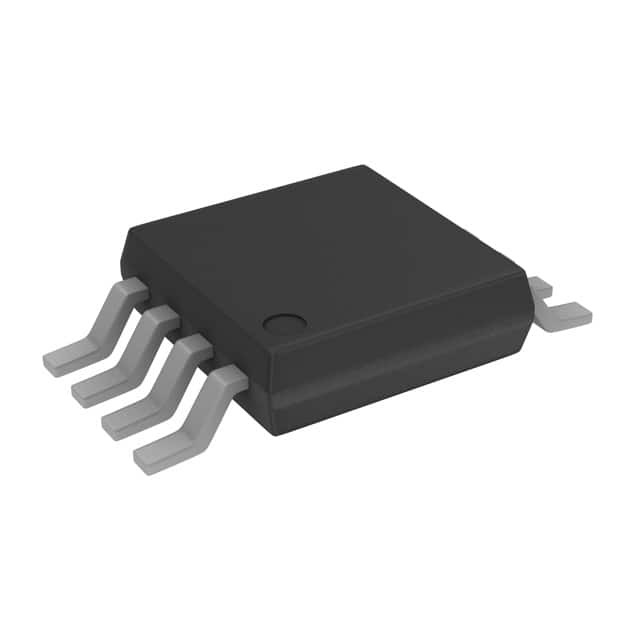

AD5339ARMZ

SKU: 116430

Manufacturer: Analog Devices

DAC 2-CH Resistor-String 12-bit 8-Pin MSOP Tube

1210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Process Technology	CMOS
Architecture	Resistor-String
Resolution	12bit
Conversion Rate	14.8ksps
Number of DAC Channels	2
Number of Outputs per Chip	2
Maximum Settling Time (us)	10
Digital Interface Type	Serial (2-Wire)
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	External
Minimum Single Supply Voltage (V)	2.5
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Maximum Power Dissipation (mW)	1.9
Integral Nonlinearity Error	±16LSB
Full Scale Error	±1%FSR
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tube
Pin Count	8
Standard Package Method	MSOP
Original Package	MSOP
Terminal Form	Surface Mount
Package Height	0.85
Package Length	3
Package Width	3
PCB changed	8
