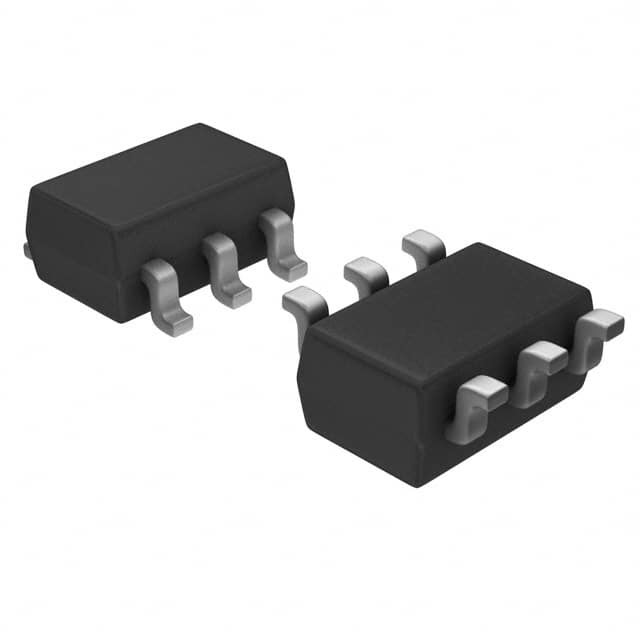

AD5311BRTZ-500RL7

SKU: 150247

Manufacturer: Analog Devices

DAC 1-CH Resistor-String 10-bit 6-Pin SOT-23 T/R

1510 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Process Technology	CMOS
Architecture	Resistor-String
Resolution	10bit
Conversion Rate	143ksps
Number of DAC Channels	1
Number of Outputs per Chip	1
Maximum Settling Time (us)	9
Digital Interface Type	Serial (2-Wire, I2C)
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	External
Minimum Single Supply Voltage (V)	2.5
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Integral Nonlinearity Error	±4LSB
Full Scale Error	±1.25%FSR
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Supplier Temperature Grade	Industrial
Pin Count	6
Standard Package Method	SOT
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.15
Package Length	2.9
Package Width	1.6
PCB changed	6
