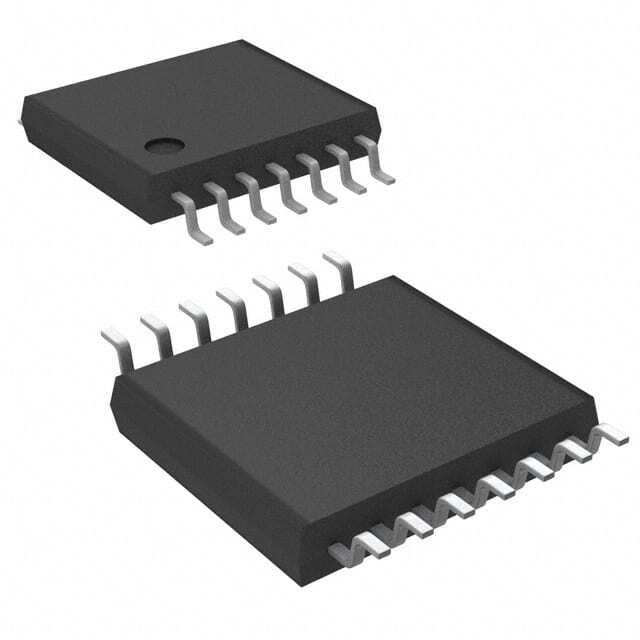

AD5291BRUZ-20

SKU: 144813

Manufacturer: Analog Devices

Digital Potentiometer 20kOhm 256POS Non-Volatile 14-Pin TSSOP Tube

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Pot per Package	1
Number of Positions	256
Memory Type	Non-Volatile
Resistance Value (kOhm)	20
Minimum Single Supply Voltage (V)	9
Typical Single Supply Voltage (V)	15
Maximum Single Supply Voltage (V)	33
Maximum Dual Supply Voltage (V)	±16.5
Typical Dual Supply Voltage (V)	±15
Minimum Dual Supply Voltage (V)	±9
Maximum Supply Current (mA)	0.0001(Typ)
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Extended Industrial
Packing Method	Tube
Pin Count	14
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1
Package Length	5
Package Width	4.4
PCB changed	14
