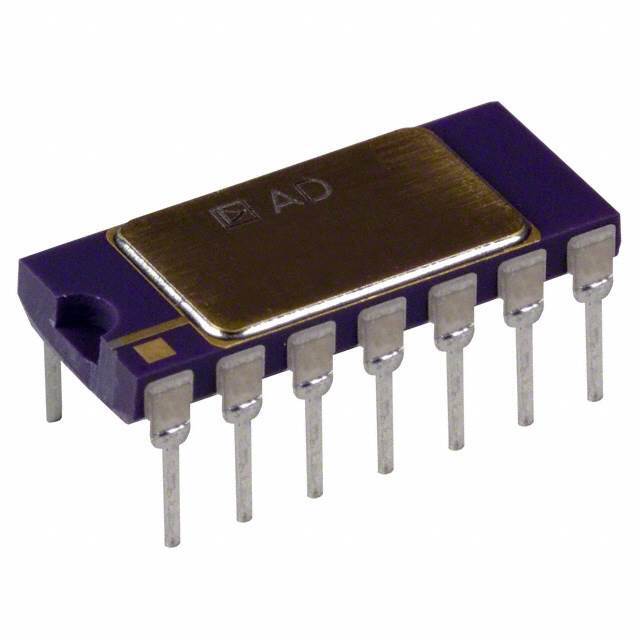

AD522SD/883B

SKU: 58308

Manufacturer: Analog Devices

INST Amp Single ±18V 14-Pin CDIP

2180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.33.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Number of Channels per Chip	1
Minimum CMRR (dB)	75
Minimum CMRR Range (dB)	75 to 85
Maximum Input Offset Voltage (mV)	0.4@±15V
Operating Supply Voltage-Max (V)	±18
Maximum Supply Voltage Range (V)	30 to 50
Minimum Dual Supply Voltage (V)	±5
Typical Dual Supply Voltage (V)	±9
Maximum Dual Supply Voltage (V)	±18
Maximum Input Bias Current (uA)	0.025@±15V
Maximum Input Resistance (MOhm)	1000@±15V
Power Supply Type	Dual
Operating Temperature-Min	-55
Operating Temperature-Max	125
Original Package	CDIP
Pin Count	14
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.56(Max)
Package Length	19.94(Max)
Package Width	7.87(Max)
PCB changed	14
