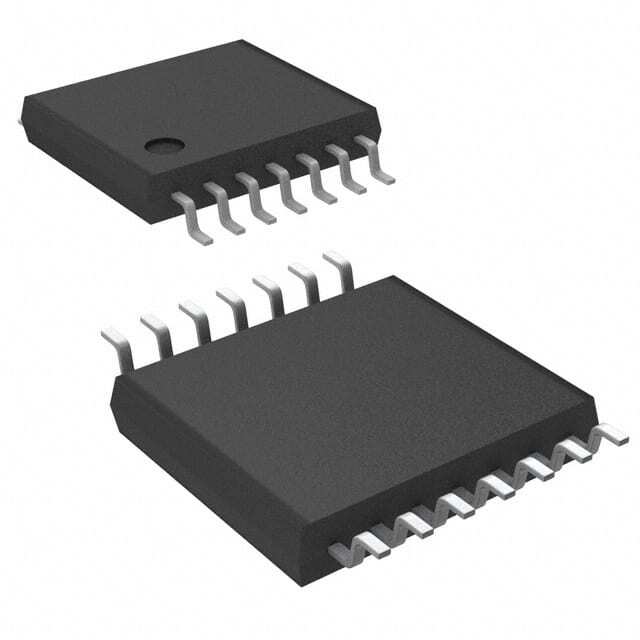

AD5064BRUZ-1REEL7

SKU: 107625

Manufacturer: Analog Devices

DAC 4-CH R-2R 16-bit 14-Pin TSSOP T/R

2490 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	R-2R
Resolution	16bit
Conversion Rate	125ksps
Number of DAC Channels	4
Number of Outputs per Chip	4
Maximum Settling Time (us)	13
Digital Interface Type	Serial (3-Wire, SPI, QSPI, Microwire)
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	External
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Maximum Power Dissipation (mW)	30
Integral Nonlinearity Error	±2LSB
Full Scale Error	±0.07%FSR
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Supplier Temperature Grade	Industrial
Pin Count	14
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5
Package Width	4.4
PCB changed	14
