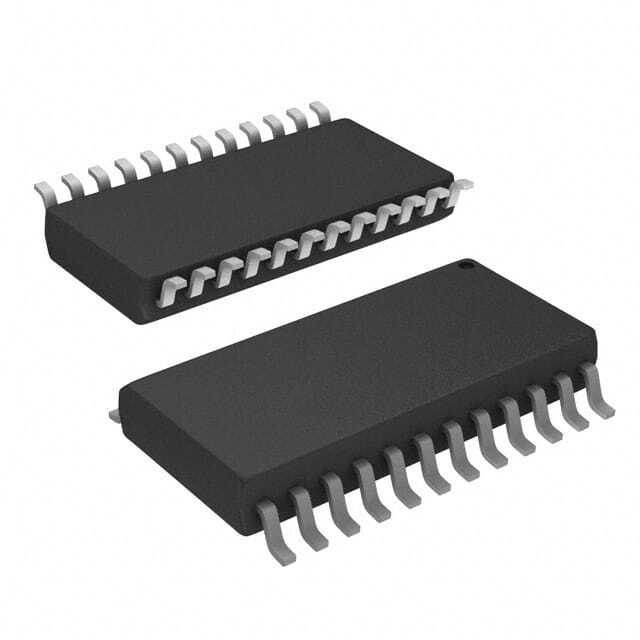

AD420ARZ-32-REEL

SKU: 29930

Manufacturer: Analog Devices

DAC 1-CH Delta-Sigma 16-bit 24-Pin SOIC W T/R

16320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Process Technology	BiCMOS
Architecture	Delta-Sigma
Resolution	16bit
Conversion Rate	400sps
Number of DAC Channels	1
Number of Outputs per Chip	2
Maximum Settling Time (us)	3000
Digital Interface Type	Serial (3-Wire, SPI, Microwire)
Output Type	Current
Output Polarity	Unipolar
Voltage Reference	Internal
Minimum Single Supply Voltage (V)	12
Typical Single Supply Voltage (V)	15
Maximum Single Supply Voltage (V)	32
Power Supply Type	Single
Maximum Power Dissipation (mW)	176
Integral Nonlinearity Error	±0.012%FSR
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Supplier Temperature Grade	Industrial
Pin Count	24
Standard Package Method	SOP
Original Package	SOIC W
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	15.6(Max)
Package Width	7.6(Max)
PCB changed	24
