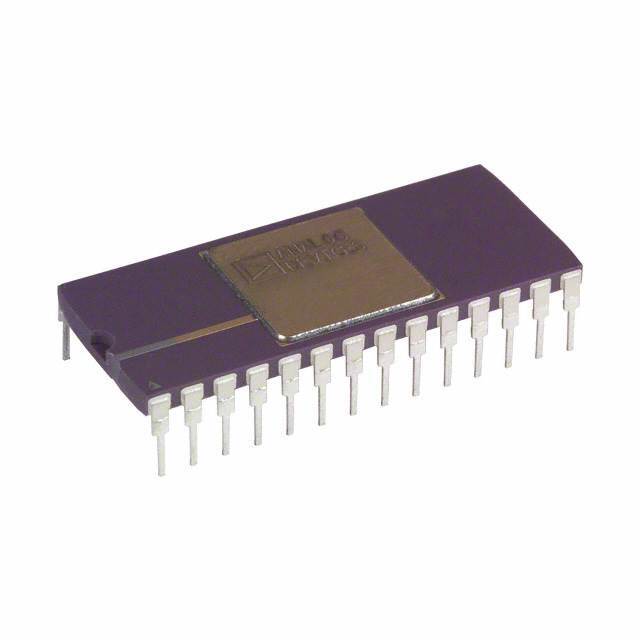

AD390TD

SKU: 116416

Manufacturer: Analog Devices

DAC 4-CH 12-bit 28-Pin SBCDIP

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001.a.2.c
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Resolution	12bit
Number of DAC Channels	4
Number of Outputs per Chip	4
Maximum Settling Time (us)	8
Digital Interface Type	Parallel
Output Type	Voltage
Output Polarity	Bipolar
Voltage Reference	Internal
Minimum Dual Supply Voltage (V)	±13.5
Typical Dual Supply Voltage (V)	±15
Maximum Dual Supply Voltage (V)	±16.5
Power Supply Type	Dual
Integral Nonlinearity Error	±0.5LSB
Full Scale Error	±0.05%FSR
Digital Supply Support	No
Operating Temperature-Min	-55
Operating Temperature-Max	125
Original Package	SBCDIP
Pin Count	28
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	4.2(Max)
Package Length	35.92(Max)
Package Width	15.49(Max)
PCB changed	28
