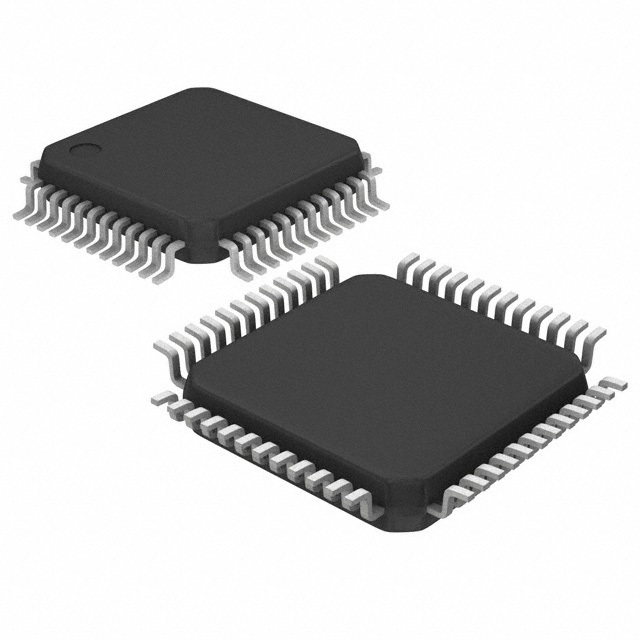

AD2S1210ASTZ-RL7

SKU: 150238

Manufacturer: Analog Devices

Resolver to Digital 16bit Parallel/Serial (4-Wire, SPI) ±10arcmin Automotive 48-Pin LQFP T/R

1050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	Resolver to Digital
Resolution (bit)	16
Accuracy (arcmin)	±10
Maximum Input Frequency (kHz)	20
Typical Reference Frequency (kHz)	20(Max)
Typical Tracking Rate (r/s)	156.25(Max)
Digital Interface Type	Parallel
Input Signal Type	Differential
Velocity Output	Yes
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Maximum Input Voltage	4Vp-p
Typical Voltage Reference	2.47V
Maximum Supply Current (mA)	12
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	48
Standard Package Method	QFP
Original Package	LQFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	7
Package Width	7
PCB changed	48
