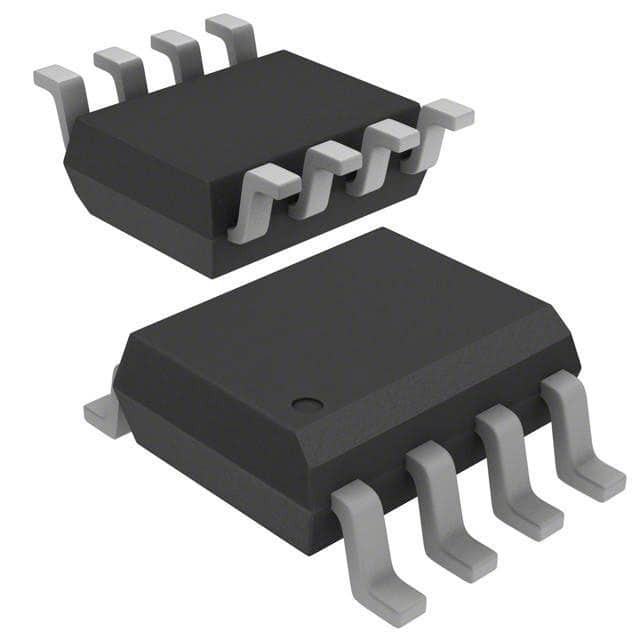

AD22057RZ

SKU: 102265

Manufacturer: Analog Devices

SP Amp Current Sense Amp Single 36V 8-Pin SOIC N Tube

1800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Current Sense Amplifier
Number of Elements per pcs	2
Number of Channels per Chip	1
Maximum Voltage Gain Range (dB)	<35
Maximum Voltage Gain (dB)	26.06
Minimum CMRR Range (dB)	75 to 85
Minimum CMRR (dB)	80
Operating Supply Voltage-Max (V)	36
Maximum Supply Voltage Range (V)	30 to 50
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	36
Maximum Input Resistance (MOhm)	0.4(Typ)@5V
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Power Supply Type	Single
Pin Count	8
Standard Package Method	SOP
Original Package	SOIC N
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
