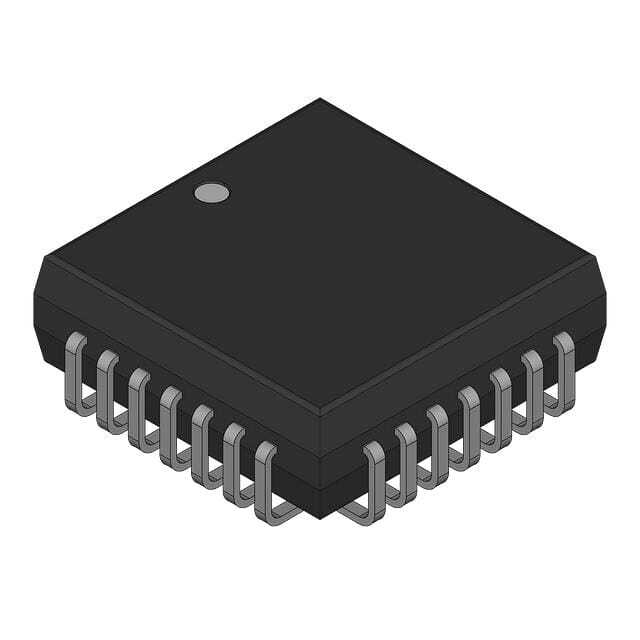

AD1555APZ

SKU: 121890

Manufacturer: Analog Devices

2-Channel Single ADC Delta-Sigma 256ksps 24-bit Serial 28-Pin PLCC Tube

1130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Process Technology	BiCMOS
Architecture	Delta-Sigma
Resolution	24bit
Number of ADCs	1
Number of Input Channels	2
Sampling Rate	256ksps
Digital Interface Type	Serial
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	External
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Dual
Input Voltage	±2.25V
Minimum Dual Supply Voltage (V)	±4.75
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±5.25
Typical Power Dissipation (mW)	77
Maximum Power Dissipation (mW)	96
Full Scale Error	±10%FSR
Sample and Hold	No
Single-Ended Input	No
Digital Supply Support	Yes
Operating Temperature-Min	0
Operating Temperature-Max	85
Packing Method	Tube
Pin Count	28
Standard Package Method	LCC
Original Package	PLCC
Terminal Form	Surface Mount
Package Height	3.94(Max)
Package Length	11.58(Max)
Package Width	11.58(Max)
PCB changed	28
