5962-9683901MPA

SKU: 58259

Manufacturer: Analog Devices

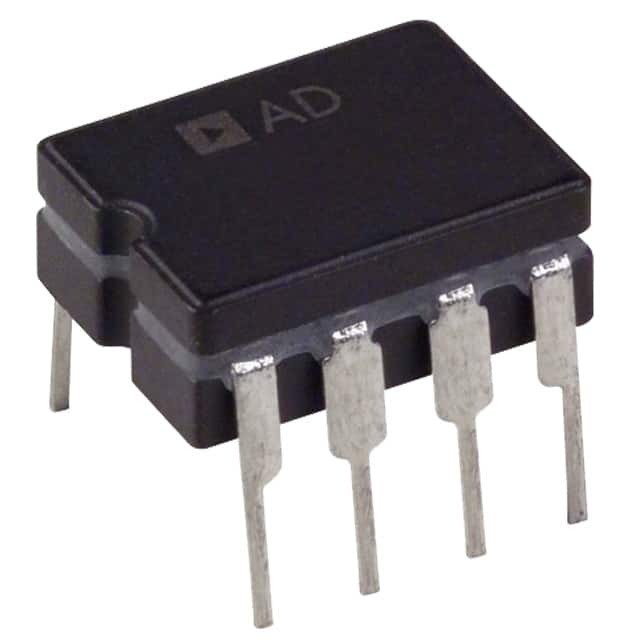

Op Amp Single High Speed Amplifier R-R O/P ±6V/12V 8-Pin CDIP Tube

3230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	High Speed Amplifier
Manufacturer Type	High Speed Amplifier
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Output
Process Technology	BiCOM
Maximum Input Offset Voltage (mV)	7@5V
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	9
Maximum Single Supply Voltage (V)	12
Minimum Dual Supply Voltage (V)	±1.5
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±6
Maximum Input Offset Current (uA)	0.5@5V
Maximum Input Bias Current (uA)	3.2@5V
Power Supply Type	Dual
Typical Slew Rate (V/us)	160@5V
Typical Input Noise Voltage Density (nV/rtHz)	16@5V
Typical Voltage Gain (dB)	95
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.6@5V
Minimum PSRR (dB)	72
Minimum CMRR (dB)	74
Minimum CMRR Range (dB)	71 to 75
Typical Settling Time (ns)	55
Shut Down Support	No
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tube
Original Package	CDIP
Pin Count	8
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.56(Max)
Package Length	10.29(Max)
Package Width	7.87(Max)
PCB changed	8
