5962-8954401PA

SKU: 73864

Manufacturer: Analog Devices

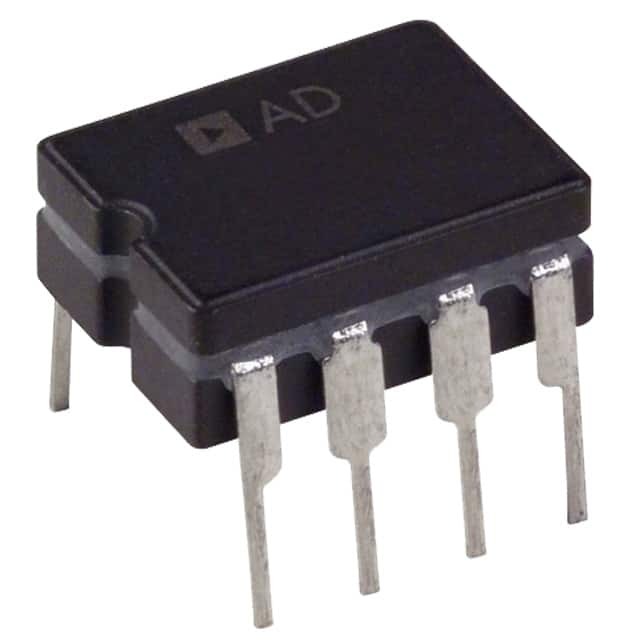

Op Amp Single Low Power Amplifier ±20V 8-Pin CDIP Tube

3560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Low Power Amplifier
Manufacturer Type	Low Power Amplifier
Number of Channels per Chip	1
Process Technology	Bipolar
Maximum Input Offset Voltage (mV)	0.025@±15V
Minimum Dual Supply Voltage (V)	±2.25
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±20
Maximum Input Offset Current (uA)	0.0001@±15V
Maximum Input Bias Current (uA)	0.0001@±15V
Maximum Quiescent Current (mA)	0.6@±15V
Power Supply Type	Dual
Maximum Power Dissipation (mW)	500
Typical Slew Rate (V/us)	0.1(Min)@±15V
Typical Voltage Gain (dB)	109.54(Min)
Minimum PSRR (dB)	114
Minimum CMRR (dB)	114
Minimum CMRR Range (dB)	105 to 115
Shut Down Support	No
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tube
Original Package	CDIP
Pin Count	8
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.56(Max)
Package Length	10.29(Max)
Package Width	7.87(Max)
PCB changed	8
