5962-88565022A

SKU: 107573

Manufacturer: Analog Devices

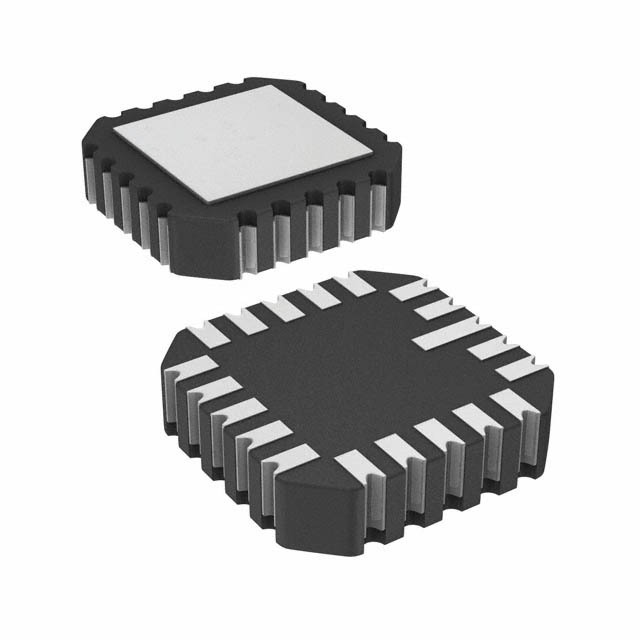

Op Amp Quad Low Noise Amplifier ±18V 20-Pin CLLCC Tube

2630 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.33.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Low Noise Amplifier
Manufacturer Type	Low Noise Amplifier
Number of Channels per Chip	4
Maximum Input Offset Voltage (mV)	0.8@±15V
Typical Dual Supply Voltage (V)	±15
Maximum Dual Supply Voltage (V)	±18
Maximum Input Offset Current (uA)	0.01@±15V
Maximum Input Bias Current (uA)	0.025@±15V
Maximum Supply Current (mA)	11@±15V
Power Supply Type	Dual
Maximum Power Dissipation (mW)	800
Typical Slew Rate (V/us)	6.5(Min)@±15V
Typical Voltage Gain (dB)	113.98(Min)
Minimum PSRR (dB)	105.04(Max)
Minimum CMRR (dB)	105
Minimum CMRR Range (dB)	105 to 115
Shut Down Support	No
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tube
Pin Count	20
Standard Package Method	LLCC
Original Package	CLLCC
Terminal Form	Surface Mount
Package Height	2.54(Max)
Package Length	9.09(Max)
Package Width	9.09(Max)
PCB changed	20
