5962-87716022A

SKU: 15737

Manufacturer: Analog Devices

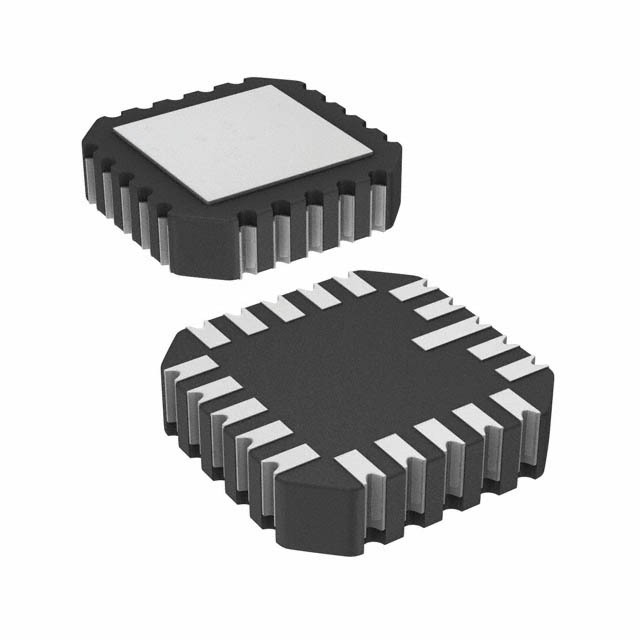

Analog Multiplexer Single 8:1 20-Pin CLLCC Tube

1910 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Analog Multiplexer
Number of Channels per Chip	1
Number of Inputs per Chip	8
Number of Outputs per Chip	1
Chip Enable Signals	Yes
Maximum Propagation Delay Bus to Bus (ns)	2100@±15V
Maximum Turn-On Time (ns)	2000@±15V
Maximum Turn-Off Time (ns)	400@±15V
Input Signal Type	Single
Output Signal Type	Single
Maximum Dual Supply Voltage (V)	±18
Typical Supply Current (mA)	5@15V/-1.8@-15V
Maximum Supply Current (mA)	12@15V/-3.8@-15V
Maximum High Level Output Current (mA)	25
Maximum On Resistance (Ohm)	400@±15V
Maximum On Resistance Range (Ohm)	400 to 1000
Propagation Delay Test Condition (pF)	10
Power Supply Type	Dual
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tube
Original Package	CLLCC
Pin Count	20
Standard Package Method	LLCC
Terminal Form	Surface Mount
Package Height	2.54(Max)
Package Length	9.09(Max)
Package Width	9.09(Max)
PCB changed	20
